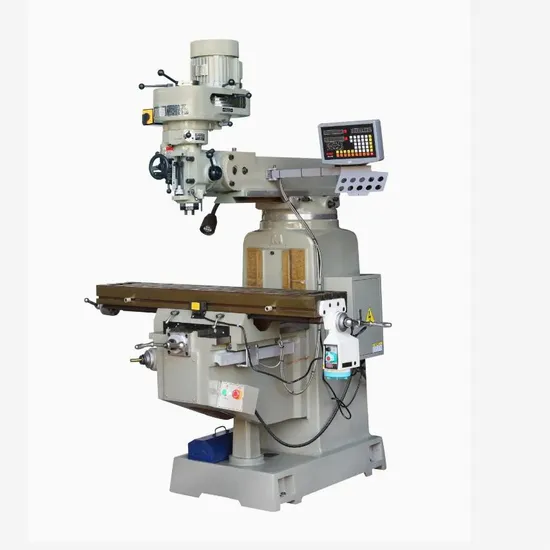

Robust Taiwan Milling Machine with Precision Vertical Design, CNC Machine, Milling

Product Description

Introducing the revolutionary 4s Vertical Lifting Table Milling Machine, a superior metal milling marvel crafted in Taiwan with unparalleled precision and cutting-edge design. Engineered to redefine efficiency and precision in the metalworking industry, this machine stands as a testament to advanced engineering and exceptional craftsmanship.
Product Description
Distinctive Mechanical CharacteristicsConstructed with robust Meehanna cast iron, this machine guarantees unmatched rigidity and stability, ensuring a lifetime free from deformation. Experience robust and dependable performance, honed to perfection.The spindle is empowered with a precision bearing combination that unleashes formidable cutting force and impeccable accuracy, elevating your machining capabilities to new heights.Boasting a pioneering inverted hanging design, the end milling head promises remarkable precision, effortless operation, and convenient braking, with bespoke solutions available for those with specialized needs.The three-axis screw nuts are crafted from premium phosphorus meter copper, renowned for its exceptional wear resistance and durability, ensuring an extended lifespan.The XY shaft slide is subjected to elevated high-frequency annealing treatment, enhancing its resistance to tail wear and substantially prolonging its operational longevity.An advanced integrated lubrication system guarantees seamless sliding, optimizing overall machine performance for peak efficiency.
Product Parameters
1.Advanced Milling Machine Rotation Speed
Rotation speed is a vital factor, profoundly affecting processing efficiency and cutting force. Accelerated rotation boosts cutting prowess, enhances surface quality, and minimizes residual stress on components.
Optimized Milling Machine Cutting Speed Cutting speed is critical for achieving ideal processing speed and quality. It varies based on material hardness, cutter material, and machine type, ensuring supreme results. Enhanced Milling Machine Processing Accuracy Processing accuracy is a pivotal performance metric, influencing both machining and part quality. It is affected by cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine tool errors. Unwavering Milling Machine Precision Stability Precision stability secures consistent machine accuracy during operations. It is influenced by initial tool errors, machine tool deformation, and tool wear, being crucial for maintaining superior quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.
