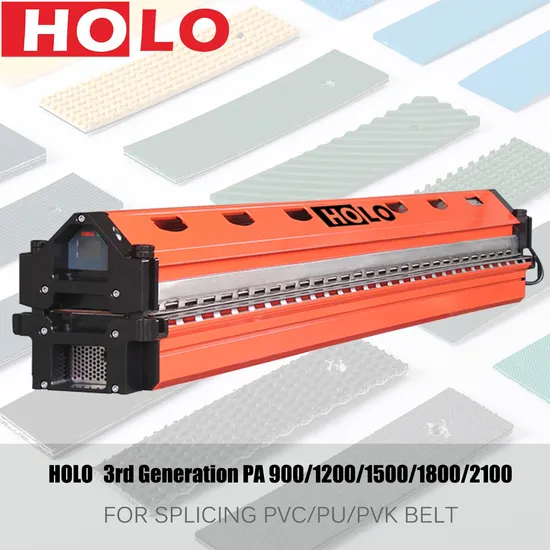

New Design Belt Vulcanizing Machine, Use for PU PVC etc Belt

Product Description

Machine Apperance:
HOLO push out the third generation of air cooling press, can quickly splicing conveyor belts, bring you more efficient, simpler and more perfect seamless splicing.

Tool Specifications	PA-III 900	PA-III 1200	PA-III 1500	PA-III 1800	PA-III 2100
Effective length	900mm	1200	1500mm	1800mm	2100mm
Effective width	150mm	150mm	150mm	150mm	150mm
Weight upper part	30kg	38kg	46KG	52KG	60KG
Weight Lower part	31kg	39kg	47KG	55KG	62KG
Total weight	61kg	77kg	95KG	110KG	125KG
Over length	1125mm	1425mm	1730mm	2030mm	2330mm
Over hight	320mm	320mm	320mm	320mm	320mm
Over width	310mm	310mm	310mm	310mm	310mm
Max pressure	2bar	2bar	2bar	2bar	2bar
Max Temperature	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C
Machine&Flight case weight	105kg	120kg	135KG	150KG	165KG
Wooden box size	1400*430*410	1710*430*410	2160*510*680	2460*510*680	2760*510*680

Application:
The third generation of air cooling joints, with fast splicing and cooling, can save you more time and earn more profit.
Pressure can reach 2bar, better for printing belts, treadmill belts and other thicker and harder belt splicing.
HOLO air cooling press is your best choice.
Features:
1. FRIST BRAND IN CHINA MIANLAND.
2.Larger heating area for longer size fingers and stronger splicing.
3.Simple operation, fully aytomated heating and insulation and cooling, saving you a lot of labor costs.
4.Easy to carry, it is very suitable for proving customers with on-site splicing services, expanding your scope of work.
Detailed Images:


Packing&Delivery:
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Our Service:
Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
After-sales
*Teaching video to show how to work.
*Machine introduction word to show how to work.
Warranty
*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date.
During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality.
Parts damaged because of mishandling and consumable parts are not covered by any warranty.
*All our machines have CE certificates and passed ISO9001-2008
HoloBelt Machines Collocation Solutions
Total solution is how we define Holobelt company. From design, engineering, manufacturing and training,
Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.
Workshop Show:
*Conveyor Belt Cutting Slitting Machine
*Conveyor Belt Ply Separator Splitting Machine
*Conveyor Belt Punching Finger Machine
*Conveyor Belt cooled hot press splicing Machine
*Conveyor Belt Welding Machine
*Conveyor Belt Vulcansied Machine
*PU PVC Rubber Conveyor Belt for sell
Welcome to visit our website to view details: cnlong015.en.made-in-china.com
