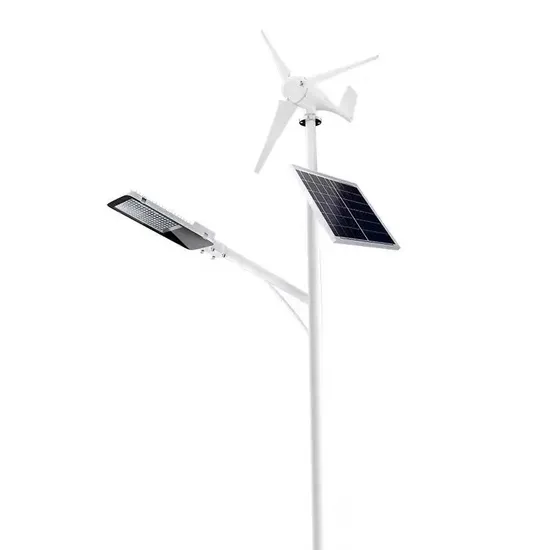

IP66 Galvanized Outdoor 100W Hybrid Wind LED Solar Street Light

Product Description

Product Description Professional Solar Wind Turbine LED Street Light Manufacturing For More Than 20 Years.
Wind solar hybrid street light is a new technology that uses solar cells and wind turbines to generate electricity. It converts wind energy and solar energy into electrical energy, which is stored in batteries and then used for lighting.
Our Advantages 1. Wind solar hybrid street light can configure different types of wind turbines according to different climate environments. In remote open areas and coastal areas, the wind is relatively strong, while in inland plain areas, the wind is smaller, so the configuration must be based on the actual local conditions. , ensuring the purpose of maximizing wind energy utilization within limited conditions.
2. Wind solar hybrid street light solar panels generally use monocrystalline silicon panels with the highest conversion rate, which can improve photoelectric conversion efficiency and reduce production costs. It can effectively improve the problem of low conversion rate of solar panels when the wind is insufficient, and ensure that the power is sufficient and the solar street lights still glow normally.
3. The wind solar hybrid street light controller is an important component in the street light system and plays a vital role in the solar street light system. The wind and solar hybrid controller has three major functions: power adjustment function, communication function, and protection function. In addition, the wind and solar hybrid controller has the functions of overcharge protection, over-discharge protection, load current and short circuit protection, anti-reverse charging, and anti-lightning strike. The performance is stable and reliable and can be trusted by customers.
4. Wind solar hybrid street light can use wind energy to convert electrical energy during the day when there is no sunlight in rainy weather. This ensures the lighting time of the LED wind solar hybrid street light source in rainy weather and greatly improves the stability of the system.
Specification

No	Item	Parameters
1	FH-LED Lamp	Power:20W/30W/40W/50W/60W/80W/100W Chip: Bridgelux/Cree/Epistar Lumens:90lm/W Voltage:DC12V/24V ColorTemperature:3000-6500K
2	Solar Panels	Power:40W/60W/2*40W/2*50W/2*60W/2*80W /2*100W Nominal Voltage:18V Efficiency of Solar Cells:18% Material: Mono Cells/Poly Cells
3	Battery (Lithium Battery Available)	Capacity:38AH/65AH/2*38AH/2*50AH/2*65AH/2*90AH/2*100AH Type:Lithium Battery Nominal Voltage:12V/24V
4	Controller	Rated Current:5A/10A/15A/15A Nominal Voltage:12V/24V
5	Pole	Height: 8m(A); Diameter: 100/170mm(d/D); Thickness: 4mm(B);Flange Plate:300*14mm(W*T)
7	Anchor Bolt	4-M16;4-M18;4-M20
8	Cables	18m/21m/24.6m/28.5m/32.4m/36m
9	Wind Turbine	100W Wind Turbine for 20W/30W/40W LED Lamp Rated Voltage:12/24V Packing Size:470*410*330mm Security Wind Speed:35m/s Weight:14kg
		300W Wind Turbine for 50W/60W/80W/100W LED Lamp Rated Voltage:12/24V Security Wind Speed:35m/s G.W:18kg
