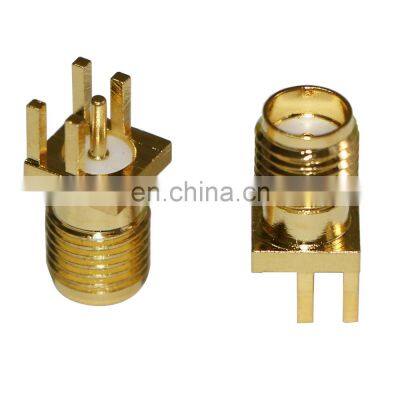

SMA RF Coaxial Connector SMB, BNC, TNC, MCX, MMCX,N-Type RF Connectors

Product Description

Product Description
Description

Product Code:SMA-KE Female Connector	Product Name: SMA Connector
Part Number:C1	Environment protect information: satisfy RoHS demand

Electrical performance
Characteristic impedance:	50Ω
Rated current:	0~18GHz
Contact resistance:	inner conductor≤3mΩ outside conductor≤2mΩ
Dielectrically withstanding voltage:	1000VRMS
Voltage rating:	335 VRMS
Insulation Resistance:	≥ 5000MΩ
Mechanical performance
Inner conductor separating force:	≥0.28N
Durability:	500 times
Material and surface treatment:	Metal material, workmanship and surface treatment
Contact
Material of male:	copper alloy
Surface treatment:	full copper and gold-plated
Workmanship:	machining operation
Material:	copper alloy
Surface Treatment:	full copper and gold-plated
Workmanship:	machining operation Plastic, Workmanship And Forming
Insulator
Material:	polytetrafluoroethylene
Workmanship:	machining operation
Operation environment
Temperature Range:	-55℃~+155℃
Shock:	500 m/s2
Vibration:	10~2000Hz,10m/s2
Structure and Dimension
Maximum dimension of plug:	14MM/Customized
Brief Introduction
Package and Store:			100PCS/package

We are a large company manufacture RF coaxial connectors.SMA(C1) is one kind of microminiature RF coaxial connectors with snap-on coupling self-lock mechanism, Characteristic impedance is 50Ω.They are widely used in connection with RF coaxial cable or the transmission of RF signal in the mobile communication system, GSM, GPRS, CDMA, LTE, GPS, GNSS, GLONASS, BEIDOU corresponding to the network, IT field and LANS etc. The characteristic of connector is in small volume, light weight and convenient connection.
Related Products
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
