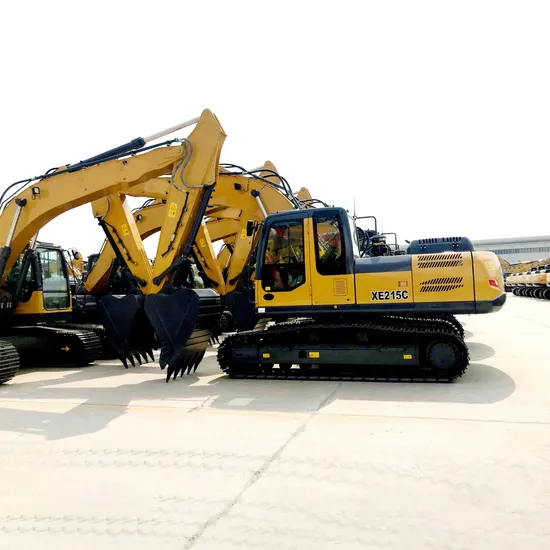

China Famous Brand 21 Ton Hydraulic Crawler Excavator Higher Quality XE215C

Product Description

Product Description
1,High-end configuration·Excellent performance
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
2,New generation·Environmental·Energy-saving·Large power engine
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced, and fuel consumption is reduced by 10% or less compared to previous generation of machine.
With independently developed intelligent study-type control system in XE215C series, it can be matched efficiently and reasonably so that the resistance of hydraulic oil return system is greatly decreased, working efficiency reaches above 15% (compared with old model XE215C), which has the highest earthwork efficiency among similar models.
3,High quality·Enjoyable driving
(1) Driver's cab
Brand new injection molding drive's cab, advanced ergonomic design and sufficient provide the best working environment for operators.
(2) Precautions against vibration
Double glazing glass and liquid seal shock rubber are standard so that the noise is reduced to minimum (reduced by 6DB) and the fatigue of driver is effectively relieved.
(3) Air-conditioner
The air volume of new sir-conditioning system is increased by 23%, which brings better heating and cooling effect and more comfortable operation.
4,Firm and efficient·Durable
(1) Structural parts
With finite element analysis for structural parts and application of enhanced working devices, the reliability, durability, multi-mode adaptability are greatly improved. It has the bucket with largest capacity among the same type of models so that the efficiency of whole machine is greatly improved, meanwhile overall quality distribution is optimized with excellent stability.
(2) Carrier ang frame
The new butter pool structure strongly ensures lubrication environment of slewing mechanism so that its service life is greatly extended; oversize slewing bearing and carrier system bring the whole machine stronger adaptability in mine conditions and longer service life.
Product Parameters

Model	Parameters
Engine	Model	CC-6BG1TRP
	Equipped	Electronic fuel injection
		Four strokes
		Water cooling
		Turbo-charging
		Air to air intercooler
	No. of cylinders	6
	Output power	128.5/2100 kW/rpm
	Torque/speed	637/1800 N.m/rpm
	Displacement	6.494 L
Operation Weight		21900 kg
Bucket Capacity		0.9-1.0 m ³
Main performance	Travel speed(H/L)	5.5/3.3 km/h
	Rotating speed	13.3 r/min
	Gradeability	≤35°
	Ground pressure	47.2 kPa
	Bucket digging force	149 kN
	Arm digging force	111 kN
	Maximum traction	184 kN
Hydraulic system	Main pump	2 plunger pumps
	Rated flow of main pump	2×209 L/min
	Pressure of prime valve	34.3/37.0 Mpa
	Pressure of travel system	34.3 Mpa
	Pressure of swing system	28 Mpa
	Pressure of pilot system	3.9 Mpa
Oil capacity	Fuel tank capacity	400 L
	Hydraulic tank capacity	220 L
	Engine oil capacity	25 L
Appearance size	Overall dimensions(L*W*H)	9625×2990×3100 mm
	Width of platform	2830 mm
	Length of crawler	4225 mm
	Overall width of chassis	2990 mm
	Width of chassis	600 mm
	Track length on ground	3462 mm
	Crawler gauge	2390 mm
	Clearance under counterweight	1050 mm
	Min. ground clearance	485 mm
	Min. tail swing radius	2890 mm
Working scope	Max. digging height	9620 mm
	Max. dumping height	6780 mm
	Max. digging depth	6680 mm
	Excavation depth of 8 feet level	6500 mm
	Max. vertical wall digging depth	5715 mm
	Max. digging reach	9940 mm
	Min. swing radius	3530 mm
Standard	Boom length	1680 mm
	Arm length	2910 mm
	Bucket Capacity	1.0 m ³
Optional	Arm length	5680 mm
	Bucket Capacity	1.0 Earth working bucket
		0.9 Rock bucket

Detailed Photos
Company Production
SUPEREGN Industrial (Shanghai) Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with SUPEREGN INDUSTRY LIMITED, located in the downtown of Shanghai City. Since our company was founded, we persistently introduce excellent Chinese construction machinery to international markets.
Our strengths are as follows:
(I) 16 years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(II) Proactive and high educated sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.;
(III) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
(IV) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(V) Comprehensive after-sales service, including one-year warranty, spare parts supply, installment and maintenance, training and technical advice;
(VI) Expertly managed ERP system and coordinated quality control system to satisfy various project requirements.
SUPEREGN has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. Our export revenue increases constantly every year, and our products have already entered 168 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. SUPEREGN, your genuine and professional
