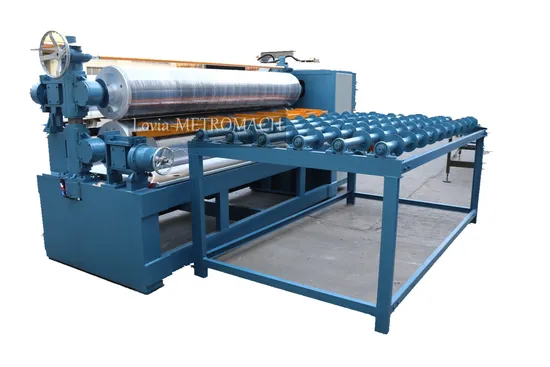

9FT Pneumatic Type Glue Spreader for Veneer Plywood

Product Description

Features of Double sides Glue Spreader machine
The glue spreader uses thickened glue rollers of large diameter and high accuracy.
The rollers are rigid with even gluing.
The gear box is installed separately to guarantee good stability, low noise and long service life.
Clamping and lifting the doctor rollers are realized by pneumatic device, which is safe, fast and convenient.
Speed of majorglue roller and out-feeding speed are adjustable to adapt to different working conditions.
Emergency stop is also installed to prevent accidents.
Technical of 8ft Air model Glue Spreader machine

Length of Spreading roller	2700mm
Diameter of spreading roller	418mm
Diameter of squeezing roller	295mm
Rubber roller speed	0~70rpm
Machine power	7.5+1.5 kw
machine size	4550x2900x1900mm
machine weight	5500kgs

How to pack for shipment
1. Machine body packed in plastic film.
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
What services to offer
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
