Tec-Sieve Aluminium Expanded Metal for Architectural Decoration

Product Description

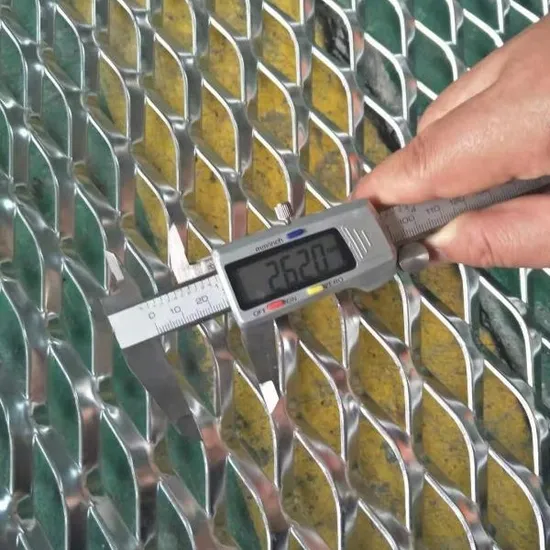

Tec-Sieve Aluminium Expanded Metal Mesh / Catwalk Mesh
Tec-Sieve Aluminium Expanded Metal Mesh can be used as catwalk mesh, it is a sheet product that has been slit and stretched to a wide array of diamond shaped openings.
Tec-Sieve Aluminium Expanded Metal Mesh provides an economical, durable and slip resistant surface.
Tec-Sieve Aluminium Expanded Metal Mesh is made out of sheets or coils of aluminum or aluminium alloy, which are uniformly slit and stretched, forming a diamond pattern of openings in the finished sheet.
Tec-Sieve Aluminium Expanded Metal Mesh is available in flattened (smooth) surface and standard (raised) surface.
Expanded metal mesh has hole patterns of various styles, which are caused by using different mold sets.
Expanded metal mesh has excellent see-through properties which allow air and sound to be transmitted while not compromising security or strength. Mild steel ensures economy and strength while aluminium can be used where weight is a consideration.
Tec-Sieve Aluminium Expanded Metal Mesh is used in many applications, including:
Walkways and catwalks in industrial and commercial premises
Platforms on buildings to allow access for maintenance and cleaning, servicing of air conditioning plant etc
Security mesh
Louvres or sun screens on the exterior of buildings
Decorative applications
Tec-Sieve Aluminium Expanded Metal Mesh has excellent workability, namely easiness of welding, cutting and shaping with proper equipment.
Our factory is good at cutting expanded mesh sheets to your desirable shape and size.
Materials:
Aluminum: Grade 1060
Aluminum alloy: Grade 3003 and 5052,etc.
Surface Treatment:
Mill finish, Powder coating, Painting, Anodizing, PVDF Coating
Technical Specification:
Thickness: 0.3mm to 10.0mm
Strand (Width): Customized
SWD * LWD (mm*mm):
2*3, 2*4, 3*5, 4*8, 5*10, 7*12, 8*16,
10*20, 16*30, 18*30, 20*40, 25*50, 30*60,
40*80,45*100, 50*100, 60*120mm,125*300mm etc.
LWM (Width): Less than 4000mm
SWM (Length): Coil or customized sheets.
Specifications of Aluminium Expanded Metal Mesh

Item No.	Thickness of Aluminium Sheets (mm)	Nominal Size of Mesh Opening (mm)			Standard Dimension of AL Expanded Mesh		Calculated Weight (kgs/m2)
		SWD (mm)	LWD (mm)	Strand (Strand Width, mm)	LWM (Width, mm)	SWM (Length, mm)
1	0.5	3	6	RC	100	RC	0.6
2	0.5	3.2	8	RC	200	2000	0.6
3	0.5	5	10	RC	RC	RC	0.6
4	0.5	6	12.5	RC	1800	3000	0.37
5	0.5	7	14	RC	1800	3000	0.37
6	0.5	8	16	RC	2000	3340	0.37
7	0.5	9	20	RC	2000	3340	0.37
8	0.5	10	25	1.12	2000	4000	0.3
9	0.5	12	30	1.35	1800	3600	0.3
10	0.8	10	25	1.12	RC	RC	0.3
11	0.8	12	30	1.35	RC	RC	0.48
12	0.8	15	40	1.68	RC	RC	0.48
13	1	10	25	1.12	RC	RC	0.48
14	1	12	30	1.35	RC	RC	0.6
15	1	15	40	1.68	RC	RC	0.6
16	1.2	10	25	1.13	RC	RC	0.6
17	1.2	12	30	1.35	RC	RC	0.73
18	1.2	15	40	1.68	RC	RC	0.73
19	1.2	18	50	2.03	RC	RC	0.73
20	1.5	15	40	1.69	RC	RC	0.91
21	1.5	18	50	2.03	RC	RC	0.91
22	1.5	22	60	2.47	RC	RC	0.91
23	1.5	29	80	3.25	RC	RC	1.21
24	2	18	50	2.03	1800	3600	1.21
25	2	22	60	2.47	2000	4000	1.21
26	2	29	80	3.26	2500	5000	1.52
27	2	36	100	4.05	RC	RC	1.52
28	2	44	120	4.95	RC	RC	1.82
29	3	36	100	4.05	RC	RC	1.82
30	3	44	120	4.95	RC	RC	1.82
31	3	55	150	4.99	2000	5000	1.47
					2500	6400
32	3	65	180	4.60	2000	6400	1.14
					2500	8000
33	4	22	60	4.50	1500	2000-3000	4.42
34	4	30	80	5	RC	2000-4000	3.60
35	4	38	100	6	2000	2000-4500	3.41
36	5	24	60	6	RC	2000-3000	6.76
37	5	35	80	6	RC	2000-4000	5.07
38	5	38	100	7	RC	2000-4500	5.05
39	5	56	150	6	RC	2000-6000	2.90
40	5	76	200	6	RC	2000-6000	2.13
41	6	32	80	7	RC	2000-4000	7.10
42	6	38	100	7	RC	2000-4500	5.98
43	6	56	150	7	RC	2000-6000	4.05

Note: RC: Reasonably Customized. Any other specifications of aluminium expanded metal mesh sheets with reasonable technical parameters, including LWM and SWM, are also available upon request.
