Scaffolding Welding Equipment Arc Welder Welding Tool

Product Description

Product details

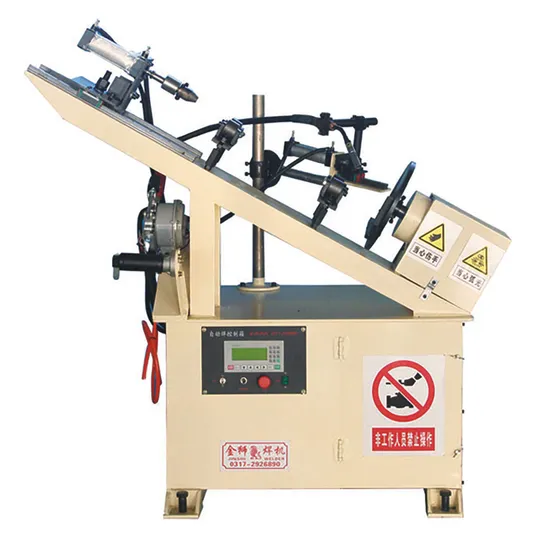

Automatic Jack Base Scaffolding Welding Machine:
The equipment is suitable for base welding, it can change the Angle welding into flat welding, so that the edge of the weld is smooth. The welding gun bracket adopts the humanized fine-tuning device, Angle, height adjustment is convenient.

The equipment is mainly used for: automatic welding of scaffolding lead screw base.
(No manual spot welding required).
Scope of welding parts applicable: (can be customized according to customer requirements)
1. Lead screw tube length: 0.2-0.8m.
2. Lead screw diameter: #38, #42, #48, #60
3. Tray diameter: ≤250MM
Equipment features:
1, the weld is uniform, full, beautiful and wide. Reduce grinding time and welding material waste.
2, PLC+ industrial touch screen, man-machine interface. The components of the control system are imported or well-known domestic brands. The welding speed is stepless and adjustable, the operation is simple and convenient, the working performance is stable and reliable, and the machine, electricity and gas control is integrated.
3, pneumatic clamping workpiece, fast speed, welding gun Angle humanized adjustment, improve the work efficiency.
4, fast welding speed, efficiency than manual welding more than 2 times. Reduced labor intensity.
Power: 10KW
Output: 150 sticks/hour
Product parameter :

Control input power supply	Three-phase four-wire 380V/50HZ
Spindle rotating machine	86BGYH1146A stepper motor
Air source pressure adjustment range	0.2-0.8 mpa
Motor speed	5-100rpm
Motor deceleration mode	Gear reduction
Motor speed regulation mode	PLC control
The adjustment mode of sending and withdrawing guns	pneumatic
Body size (length * width * height)	1420 * 800 * 1450

Main configuration:

Automatic welding main machine structure	Steel plate square pipe, channel steel welding
Pneumatic system	Cylinder, solenoid valve
Electrical control system	Relay, key switch
Welding power supply	PLC, stepping motor, display screen
Wire feeder	Golden lion automatic welding special power supply
Welding gun	Special wire feeding mechanism
Welding gun clamp	Automatic welding special welding gun
Straight slide	Guide rail, slide block

Company honors and qualifications:
Corporate office area:
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
Frequently Asked Questions
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
