Rubber Pressure Water Bag Vulcanizing Accessories for Conveyor Belt Splicer Pressurizing

Product Description

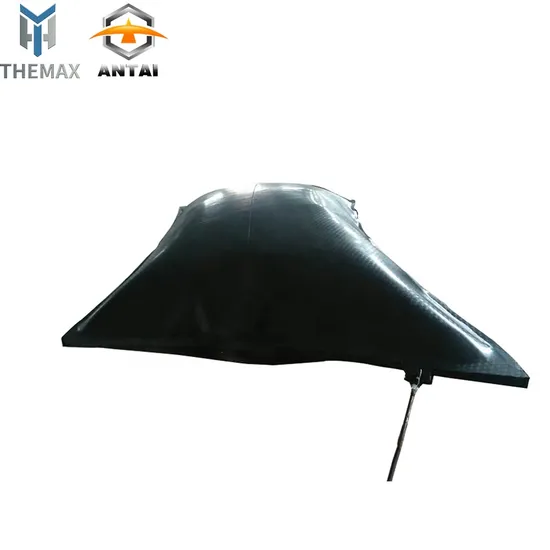

Rubber Pressure Water Bag Vulcanizing Accessories For Conveyor Belt Splicer Pressurizing
Product Description Rubber Pressure Bag For Conveyor Belt Vulcanizing Machine Rubber Pressure Bag is another self-developed product of Antai company in 2005. It takes our R & D department 5 years to finally develops and pushes it to the market. This revolutionary technology makes our rubber pressure bag a perfect alternate to the old water pressure plate and at the same time, it makes the joint effect of the vulcanized product of our company reach new height.Since then"ANTAI" brand vulcanizing machine consistently takes the lead in market competition with its core technology and high quality.

Model (mm)	Dimension for 18° (mm)	Dimension for 90° (mm)	Pressure (Mpa)	Weight (kg)	Expansive degree (mm)
1000*830	1220*830*20	1160*830*20	2.0-3.0	20	10-40
1200*830	1420*830*20	1360*830*20	2.0-3.0	23	10-40
1400*830	1620*830*20	1560*830*20	2.0-3.0	26	10-40
1600*830	1820*830*20	1760*830*20	2.0-3.0	29	10-40
1800*830	2020*830*20	1960*830*20	2.0-3.0	32	10-40

Model(mm)	Dimension for 18° (mm)	Dimension for 90° (mm)	Pressure (Mpa)	Weight (kg)	Expansive degree (mm)
1000*1000	1220*1000*20	1160*1000*20	2.0-3.0	20	10-40
1200*1000	1420*1000*20	1360*1000*20	2.0-3.0	23	10-40
1400*1000	1620*1000*20	1560*1000*20	2.0-3.0	26	10-40
1600*1000	1820*1000*20	1760*1000*20	2.0-3.0	29	10-40
1800*1000	2020*1000*20	1960*1000*20	2.0-3.0	32	10-40

Product advantages: 1.Clean and tidy appearance: the entire rubber press bag is formed through rubber vulcanization and can be used repeatedly without leakage.
2.Take high pressure.Can make full expansion without second pressure and make sure the conveyor belt vulcanizing machine can be uniformly compressed during belt joint and repair process. The tested safety pressure range is ≤ 2.5Mpa, which completely meets the requirements of vulcanizing joint machine.
3.Portable and easy operation. Merely a quarter weight of the old water pressure plate. Due to the increase of expansion,simply tighten the fixed bolt with a wrench on both sides of the equipment during installation.
4.Large compression area. The border is only 1.5cm,by increasing pressure area, vulcanization quality can be effectively improved.
ANTAI COMPANY ANTAI is the leading manufacturer of conveyor belt vulcanizing equipment. ANTAI has been offering unique Sectional Vulcanizing Systems that provide strong, long-lasting splices, for over 27 years in China.
The Unique and Innovative belt splicing system designed to be portable and offer maximum versatility in splicing all types and sizes of conveyor belting. It's intelligent, modular design and vast array of unique operating features, can handle all types of belt designs in every conveyor application.
