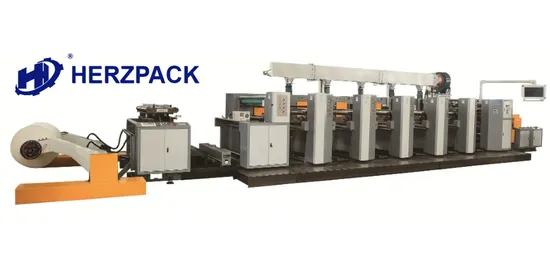

Flexo Printing Machine for Paper, Paper Bag

Product Description

Unit type Flexo printing machine
Product Description:
1. From 1 color to 13 colors to meet different customer needs.
2. Printing thickness from 20g to 100g, 100g to 200g, 200g to 400g
3. SC series cast wall panels for enhanced stability
4. Standard supporting automatic deviation correction, providing continuous printing material control
5. Print unit pull-out design for quick installation and replacement of color components
6. High-speed drying ability, infrared and hair dryer
7. Horizontal and vertical registration capabilities to meet the needs of high quality printing
8. Stable tension control system
9. Standard configuration stroboscopic detection system to detect printing color and registration effect from
time to time
10. Easy to use console
11. Unlimited expansion space for super strong processing capability - non-stop rewinding, automatic
overprinting, material dusting, corona, double-sided printing, line cutting, cutting, etc.
Applications
1.Use water-based inks to achieve environmentally friendly printing standards;
2.High production efficiency, more suitable for large-scale long-running activities;
3.Can be used with various types of bag making machines; automated production, reducing labor costs;
4.Save printing paper and ink.

Machine Specifications:

Wide Web Series	830	1000	1100	1270
Max.Web Width	850mm	1015mm	1115mm	1285mm
Max. Printing Width	830mm	1000mm	1100mm	1270mm
Printing Repeat	279.4~710mm	279.4~710mm	279.4~710mm	381~1191mm
Max. Unwind Diameter	1524mm
Max. Rewind Diameter	1524mm
Gear	1/8CP
Max. Speed	152m/min
Power	15~18KW	20~30KW	20~30KW	20~30KW
System	Automatic
Air Pressure	100PSI(0.6Mpa)
Power Requirement	380V 3PH 50HZ
Substrate	20~100gsm/100~200gsm/200~400g

Can customize products according to customer requirements
