Intelligent Industrial Arc Welding Robot and Positioner Welding Workstation for Efficient Solution of Metal Pipe Welding

Product Description

Product Description Servo positioner is a specialized welding and cutting equipment for industrial robots, suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds. The rotary table of the displacement machine adopts a well-known foreign brand servo motor combined with a high-precision reducer, which has high rotary accuracy, accurate positioning, and strong load-bearing capacity. By configuring different servo motors (linkage and non linkage), remote operation of the displacement machine can be achieved through robot teaching aids or external operation boxes.
The servo displacement machine mainly consists of a fixed base, a rotating spindle box, a welded frame, a servo motor and precision reducer, a conductive mechanism, a protective cover, and an electrical control system.
The welded overall frame is made of high-quality steel and welded. After being returned for stress relief, it undergoes professional mechanical processing to ensure high precision and usage accuracy in key positions. The surface is sprayed with rust proof exterior paint, and the color can be customized according to customer requirements.
Turn over to make the workpiece fixed on the workbench reach the required welding and assembly angle. The rotation of the workbench is controlled by a servo motor, which can achieve the ideal welding speed.
Detailed Photos
Product Parameters

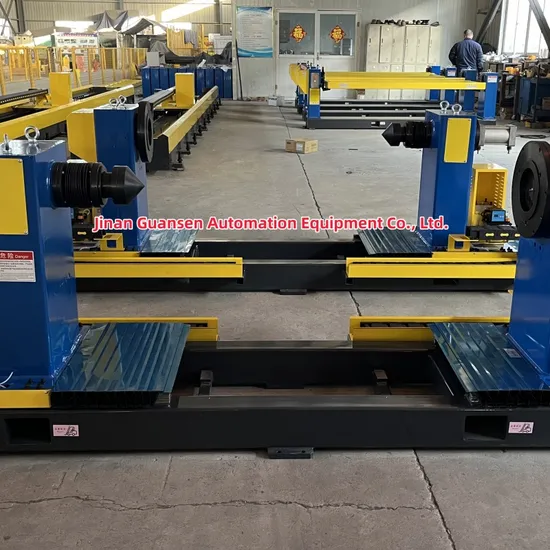

Type	Single Axis Positioner with Adjustable Tailstock
Model	AUT-SWP-ZW-500-WT	AUT-SWP-ZW-1000-WT
Rated payload	500kg((Axis radius≤R400mm)	1000kg(Axis radius≤R800mm)
Standard radius of gyration	R650mm	R900mm
Maximum load eccentricity	≤150mm	≤200mm
The height of clamping	≤300mm(Over 300mm ,the bob-weight will increase with the actual load)	≤450mm(Over 450mm ,the bob-weight will increase with the actual load)
Maximum angle of gyration	±360°	±360°
Rated speed of gyration	50°/S	50°/S
Repeat positioning accuracy	±0.08mm( At =R400mm)	±0.12mm (At R=800mm)
Adjustable travel of the tailstock	0-3000mm	0-5000mm
Adjustment method of the tailstock	Electric control/manual control	Electric control/manual control
Positioner dimension(L*W*H)	4000mm*700mm*1050mm	6200mm*850mm*1500mm
Height of gyration center	830mm	1050mm
Equipment net weight	About 600kg	About 1600kg

Company Profile

Jinan Guansen Automation Equipment Co., Ltd is located in Jinan, Shandong, China. As a high-tech enterprise, we focus on integrating research and development, design, production, and sales of various types of automation equipment. The company is committed to manufacturing professional industrial peripheral equipment and non -standard automation equipment. The products are widely used in construction machinery, locomotive vehicles, automobile manufacturing, ship heavy industry, petrochemical equipment, power engineering, coal machinery, heavy machinery and other industries. Product Lineup Robot peripheral supporting equipment Standard servo welding positioner Standard robot Linear rail Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc. Peripheral safety protection smoke removal system and other supporting equipment. Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment. The specifications of non-standard welding positioner and Linear rail can be customized .

Certifications
Packaging & Shipping
FAQ1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods? A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
