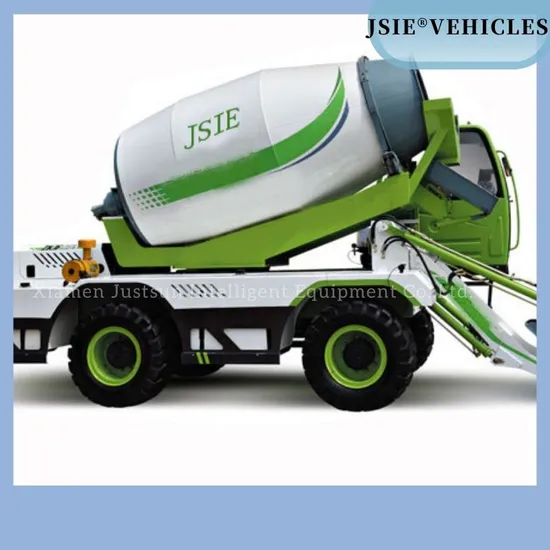

4m3 Self-Loading Concrete Mixer Truck
Basic Info.
Model NO.
JSIE4000R
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
16m3/H
Feeding Height
4350mm
Vibrating Amplitude
Without
Certification
ISO9001: 2000
Condition
New
Color
White
Special Performance
Loader & Mixer Integrated
Transport Package
Nude Packing
Specification
7600x2850x4180mm
Trademark
JSIE
Origin
China
HS Code
8705400000
Production Capacity
1000units/Year
Product Description
Product Specification| Data of the complete | ||
| Overall dimension(LxWxH): | 7500x2850x3600mm | |
| Wheelbase: | 2450mm | |
| Curb weight: | 8500kg | |
| Drive form: | Torque converter | |
| Top speed.: | 35km/h | |
| Maximum gradeability: | 30 | |
| Minimum turning radius: | 4000mm | |
| Minimum ground clearance: | 330mm | |
| Maintain the amount of annotation | ||
| Fuel tank: | 230L | |
| Total hydraulic system capacity : | 170L | |
| Oil: | 16L | |
| Water supply system parameters | ||
| Water tank capacity: | 660L | |
| Water supply mode: | time relay | |
| Engine | ||
| Model: | Yuchai YCD4122G | |
| Rated power: | 85kw | |
| Transmission case | ||
| Model: | ZL-280 power shift transmission | |
| Gear: | 4 forward 4 back | |
| Conventional parameters | ||
| Equipment model: | JBC40 | |
| Parameters of hydraulic system | ||
| Reducer: | KY07-5-J | |
| Pump: | Parker pump | |
| Motor: | HA2FM56/ 61W-VTD527 | |
| Stiring and unloading: The double cone roller has a double helical agitating screw and a convex bottom Dum geometry capacity .6000L Drum rotation speed: .__ .17 pm Concrete yield. 4.0m' 1 can The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90",but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard | ||
