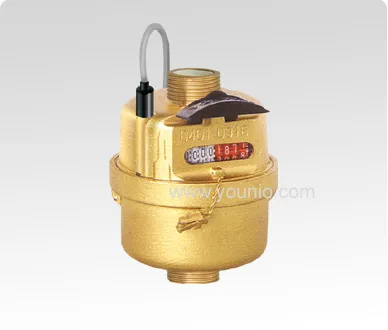

with Pulse Output Volumetric Liquid Filled Water Meter
| US$12.00 | 5,000 Pieces (MOQ) |
Basic Info.
Model NO.
LXH-15/F ~ 40/F
Size
Dn15-Dn40
Body Material
Brass/Plastic
Accuracy
ISO4064 Class C
Color
Brass Natural Color/Bule
Type
Volumetric/ Pistion Rotary
Installation
Any Pisition
Counter
Liquid Sealed
Spare Parts
with Fittings
Remote Transmssion Device
with
Transport Package
Carton
Specification
Dn15~dn40
Trademark
Younio
Origin
China
HS Code
902820
Production Capacity
50.000/PCS for One Month
Product Description
Volumetric water meterWORKING PRINCIPLES: A certain amount of water as defined by meter body passing through makes piston move. The measuring structure records its movements. Movements times defined amount making total amount of water passed registered.
CHARACTERS:
Rotary piston structure.
Copper body.
Liquid sealed registering.
Class C.
Any position installment.
WORKING CONDITION:
Water temperature≤ 45º C
Water pressure≤ 1Mpa (≤ 0.6Mpa for LXH-8S)
MAXIMUM PERMISSIBLE ERROR:
From the minimum flow-rate (qmin)inclusive to the lower zone of the transitional flow-rate (qt ) exclusive: ± 5%.
From the transitional flow-rate (qt ) inclusive to the higher zone of the maximum flow-rate (qmax ) exclusive: ± 2%.
| Specification | |||||||||
| Size | Technical Data | Dimension | |||||||
| Class of Measurement | Qs (m³/h) | Qp (m³/h) | Qt (l/h) | Qmin (l/h) | Length L (mm) | Width W (mm) | Height H (mm) | Connectiont Thread D | |
| DN15 | C | 3 | 1.5 | 22.5 | 15 | 110 | 78 | 85 | G 3/4" B |
| DN20 | C | 5 | 2.5 | 37.5 | 25 | 130 | 78 | 85 | G 1"B |
