Stainless Steel Vacuum Double Planetary Mixing and Dispersing Power Mixer for Adhesive/Pharmaceutical/Ointment

Product Description

Detailed Photos

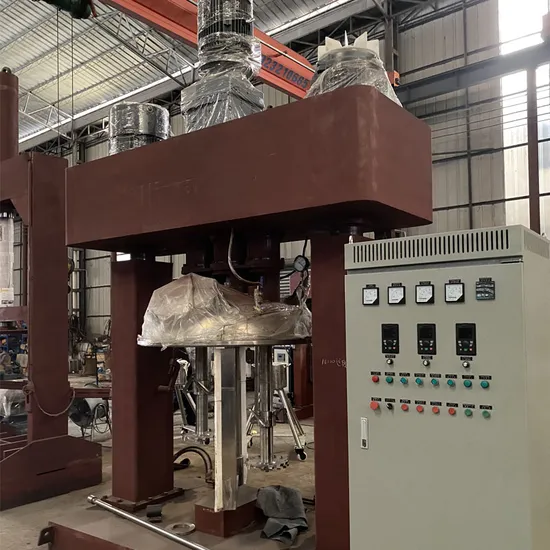

Product Description JCT power mixer
APPLICATIONS:
Power Mixer is fully integrated with the characteristics of a Planetary Mixer and Strong DispersingMachine, combining the advantages Of both devices more effectively to improve the mixing effect and efficiency.
APPLIED: Food & Cream & Chocolate MOST SUITABLE:
1. The industries of chemical, light, food, pharmaceutical, building materials and pesticides.
2, It is ideal for the production of ink, paint, adhesives, sealants, ointment,
paste like material, grease, paint, psate cosmetics, emulsions, cream food and additives.

Installation Instructions

model	feeding voluma	planetary motor	high-speed motor	Revolution speed	Rotation speed	High speed dispersion speed
DLH-6L	3.6	1.5	1.5	27	43	0~1000
DLH-20L	12	3	3	27	43	0~1000
DLH-60L	36	4	4	27	43	0~1000
DLH-100L	60	7.5	5.5	27	43	0~1000
DLH-200L	120	15	11	27	43	0~1000
DLH-350L	210	18.5	18.5	27	43	0~1000
DLH-600L	360	22	22	27	43	0~1000
DLH-1000L	600	37	30	23	43	0~1000
DLH-1500L	900	45	45	23	43	0~1000
DLH-2000L	1200	55	45	23	43	0~1000

Applies for:
1). Adhesives:DOW Corning sealant, Silicone sealant, sealant base;
2). Rubber:Silicone Rubber, RTV rubber, etc;

3). Ink, dye, paint, coating, filling plastic ointment, Paste, grease, Li-ion battery;
4). power mixer suit for all the liquid-solid, solvent, polymerization or mixing industry.Fit for the viscosity from 10,000 CP to 1,000,000 CP.
