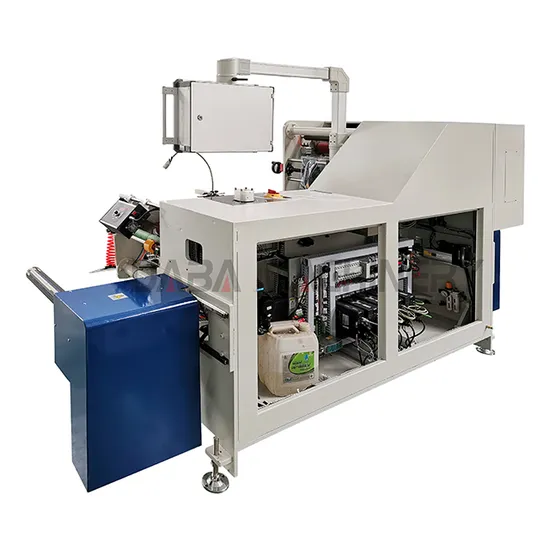

High Speed Center Seaming Machine for Shrink Sleeve Label

Product Description

Product Description
DBHZ-260D High Speed Automatic Plastic Bottle PVC PET shrink sleeve seaming machin
Unwinding system:
1. Unwinding shaft is 3 inch air shaft.
2. Edge position correction system: Photo sensor get the signal and send it to controller. Controller give the signal to execution equipment and keep straight film edge.
3. Unwinding tension controlling system: It use servo automatically and accurately control unwinding tension .
4. Air extrude device:it makes small holes on the film, when the label shrink in the tunnel, the air will extrude via the small holes.
5. Double vertical perforation device
Forming system:
1.Mold less type :It solves the problem of the film scratches during the machine working.
2.Width adjusting : The machine adjusts the width by scale wheels,it can adjust accurately and easily when changing the width of label. 3.Forming tension control: use two servo motor to control forming tension softly and accurately. 4.Pump Gluing system is controlled by PLC. It will keep the same step with the machine running speed and make the glue well distributed. Gluing quantity controlling system can control the glue quantity, machine stop glue getting back, no pollution on film, operation easily.
Rewinding system:
1. Rewinding shaft adopt 3inch air shaft.
2. Rewinding tension controlling system: Servo motor automatically and accurately to control the tension.
3. Stroboscope:It keeps the same step with the machine, it's easy to detect the gluing condition when high speed.
4. Oscillation rewinding system : Use servo motor control the shrink sleeves roll move left to right . The parameter of it can be set by touchscreen. Static eliminating eliminator.

Machine Parameter:
Model	DBHZ-260D
Materials	OPS,PVC,PET
Film thickness	20-80um
Width of unwinding	580mm
Max.Unwinding diameter	500mm
Rewinding width	25mm-240mm
Max.Rewinding diameter	900mm
Max speed of Machine	450m/min
Power	3 Phase 380V 50HZ
Supply Power	7KW
