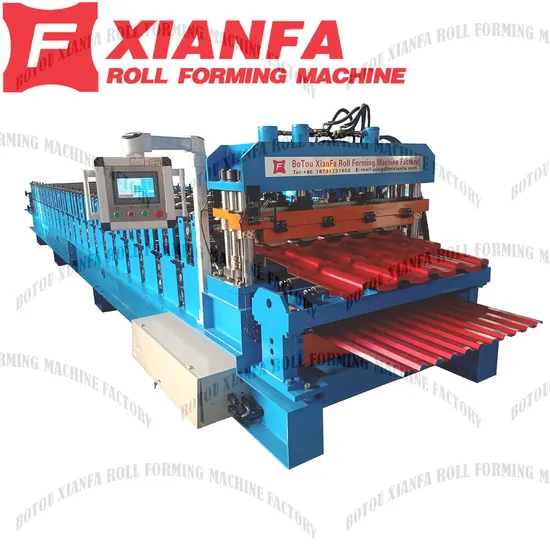

Metal Double Layer Glazed Roofing Tile and Trapezoidal Roof Forming Machine

Product Description

Product Description
We can make the double layer roll forming machine as clients' requirements and drawings. You can choose two roof or wall profiles, two IBR profiles, two corrugated profiles, or one IBR and one corrugated profile, or one glazed roof profile and one IBR or one corrugated profile. This machine is for making color steel glazed roof panel and IBR roof sheet, which are popular in European and Central Asian countries market.
Product Parameters

No
1	Suitable Material	GI/PPGI
2	Rows Of Rollers	Up layer:18rows Down Layer:21Rows
3	Productivity	Up layer:0-4m/mn Down Layer:0-15m/min
4	Sidewall thickness	20mm
5	Machine Frame	400 H Steel
6	Total Power	7.5+5.5KW
7	Thickness Of Raw Material	0.3-0.7mm
8	Diameter Of Shaft	80mm
9	Voltage	220V 60Hz 3phases or 380V 50HZ 3phases or Customized

The Chart of Process Flow
Components and Technical Specification

No		Technical Specification
1	Manual Uncoiler	Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 480-520mm
2	Main Roll Forming Machine	Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
3	Hydraulic system	Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage. Provide the initial power to the cutter through a closed oil tank. It is off without cutting, which can save the power.
4	Computer Control Cabinet	Function The whole line is controlled by Delta PLC and touch screen operation Frequency converter: Delta communication module,it is easy for operation. The technical data and system parameter can be set by touch operation. Length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
5	Shearing Mechanism	It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment
6	Output Table	It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
