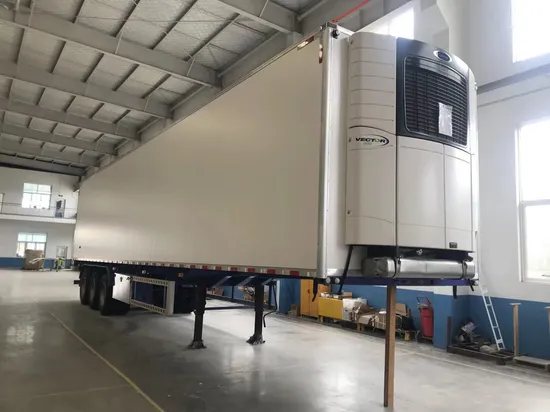

30 tons heavy truck reefer trailer Refrigerator Refrigerated Semi Trailer

Product Description

30 tons heavy truck reefer trailer Refrigerator Refrigerated Semi Trailer
From seafood transport companies and restaurants seeking a refrigerated trailer solution, to farmers that need to transport produce-meat, dairy and other perishables-the demand in China for a commercial grade, yet affordable solution to refrigerated transport has not been addressed until now. Refrigerated transport in China has typically meant large and expensive 'reefers' running diesel powered refrigeration units on trucks and semi-trailers. These solutions work well but they are not for everyone. The small business owner, the beverage reseller, fisherman and many others simply cannot afford, nor do they need or want such over dimensioned refrigerated transport solutions. We have different size light refrigerated trucks to satisfy different customers requirements.
Company information We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appreciate our clients' fully trust to us, and remember the responsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.
Respectful , Faithful , Studious , Innovative . Our progress never could leave your supporting. Warmly welcome your coming!
Refrigerator Van Trailer, Refrigerated Van Trailer, Van Semi-Trailer, Dry Van Trailer, Refrigerator Truck, Frozen Van Trailer, Cooling Van Trailer, Refrigerator Box Trailer, Refrigerated Box Trailer, Frozen Box Trailer, Cooling Box Trailer, Freezing Van Trailer, Freezing Box Trailer, Container Semi Trailer, Container Trailer, Truck Trailer, Semi Trailer, Trailer, Cimc Trailer, Cimc
Refrigerator truck, 30 tons VAN trailer, Refrigerator truck, trailer. Cooler trailer, Refrigerator van, foam in the middle, steel/GRP in the surface, thickness is 80-100 mm
Temperature: Minus 18 celsius degree
Loading capacity: 30tons
Axle: 3 sets 13 tons FUWA/ YUEK brand
Tyre: 12R22.5 tubeless tyre
1.10 years experience manufactory
2. CCC, ISO agree
3. Well designed, small order accept.
4. Manufacture according to your detail requirements
5. After-sale-support; 6 month guarantee term
1. Tare Weight 8750kg
2. Payload 31250kg
3. Chassis: Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm, width 140mm.
4. Axle: 2/3 axles of Germany design 12ton, 13 ton, 16 ton axle optional upon choice
5. Brand Name: FUWA -optional BPW
6. Suspension: Germany design heavy duty mechanical suspension or air suspension optional upon choice
7. Floor: 3mm checker plate Leaf Spring Doll type Leaf spring
8. King Pin: JOST brand 2" Bolt-in King Pin
9. Landing Gear: JOST brand Two-speed, manual operating, heavy duty Wheel Rim 8.25-20, 9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
10. Tyre: 11.00R20, 12.00R20, 11R22.5, 12R22.5 tire with one spare tire optional upon choice
11. Twist Lock: 12 nos. Of ISO twist lock for 1X20ft, 2X20ft; 1X40ft container, the retractable central locks can be laid down. Spare Tire One set of spare tire including a carrier

30 tons refrigerated semi trailer
Overall dimension	13600*2600*4000mm
Cargo body dimension	13434*2434*2500mm
GVW (kg)	40,000
Curb weight(kg)	8,750
Loading capacity (kg)	31,250
Wheel base(mm)	7500+1310+1310
F/R track base(mm)	-/1840/1840/1840
Approach/Departure angle (°)	-/14
Axles	3 x 13 tons, FUWA/ L1
Spring leaf	160*90- 10pcs
Frame thickness	500mm frame,wing plate: top 18mm,bottom 18mm, middle 10mm, 3mm thickness plate
Landing leg	28T China brand
Tire	12R22.5 tubeless tyre
Trailer body	Material	FRP+PU+FRP
	Rear door/ side door frame	304 SS
	Corner and side	Al-alloy
	Doors lock	Container lock
	Floor	Aluminum T floor
	Others	3 LED lights, air rail
Refrigerator unit	Brand	USA CARRIER
	Model	CARRIER 1550
	Function	Standby, heating
Lead time	30 working days

Q: How can we trust your company?
A: We are the official authority company by SINOTRUK and FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.We also have cooperated several times with the third party named TCI from UK. They can inspect the trucks and trailers producing and shipping after getting your authorization. We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
Our advantage:
1)high quality container semi-trailer with competitive price.
2) Certification: ISO 9001 and TS16949, South African SABS-3 for container trailer semi trailer.
3)Quick response and quotation.
4)We also like to develop new types container semi trailer according to your special requirement
all types semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect

What's the Paramenters of refrigerated semi trailer ?

DIMENSIONS & WEIGHT
Vehicle Dimensions	13800*2550*4000mm	Box Dimensions	13000*2330*2200mm
Tare Weight	Approx.8500kg	Load capacity	Approx 45000kg
BOX DESCRIPTION
Volume	Approx 60m3
Material & Thickness	GRP inside & outside of the van, polyurethane as the insulation.& 80mm
Door	One Side Door and Rear door
Other	Stainless steel of The main characters,high strength,light in weight, anti-corrosion,non-pollution,easy repair long life,excellent,insulation
SPECIFICATION
Chassis	Stringer height of 500mm, up / down flap14mm/16mm web 6mm; back plane; border 16 #channel steel, square tube runs through the beam;
Axle	3 axles
	FUWA 13 T Optional BPW
Suspension	Mechanic suspension with 10-piece leaf spring.
King Pin	JOST brand 2'' or 3.5''
Landing Gear	JOST brand Two Speed, Manually operated
Wheel Rim	ZHENGXING 8.5*20,13 pieces
Tyre	11.00R20 Radial tire , 13 pieces
Spare Tire Rack	one
Braking System	T30/30 Spring brake chamber; 40L air tanks with WABCO air controlled system.
Light & wire	LED Combination Rear Lights, and LED Side lights. wire and 7-pin socket
REFRIGERATING UNIT DESCRIPTION
Brand	Thermo King
Model	SB-210+(30)
Temperature Range	-20ºC Temperature can be controlled

1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
