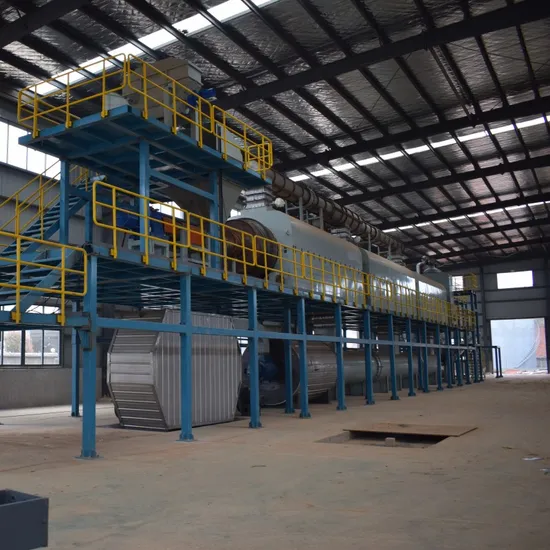

Large Capacity Waste Tire Pyrolysis Plant

Product Description

Our Qingdao Longyuan Baihong Machinery Equipment Co., Ltd is a big manufacturer for Pyrolysis Equipment for 22 years in China. Welocated at Qingdao-----a beautiful and Industry developed city.We established in year 1997, our main products are environment pyroloysis equipment.The company has passed ISO9001certification, CE certification and SGS international third party certification.To the overall design, production and manufacturing, installation and commissioning,technical training, after-sales service in the whole industrial chain operation of high-tech enterprises.
Equipment advantages:
1) The pyrolysis furnace body adopts regenerator structure to fully recycle the waste heat, which can not only prolong the service life of the main furnace, but also save fuel. Therefore, the production cost can be further saved.
2) Furnace gallbladder is made of special high temperature resistant quasi-size boiler steel. Its service life can reach 8 years.
3) The equipment is equipped with infrared anti-blockage warning and dredging device, which can detect pipeline blockage early warning and automatically solve the blockage problem in the production process, so as to ensure that the main furnace will not have safety problems due to pipeline blockage in the production process.
4) The slag discharging system adopts a two-step structure, and the slag discharging time is controlled at about 30 minutes. Slag discharges quickly and cleanly.
5) A new type of waste gas purification system is adopted to make the gas discharged after purification meet the relevant national emission standards.
6) Redundant combustible gases are dehydrated, desulphurized and impurities removed by the purification system, then compressed by a special gas compressor and stored in a storage tank. They can be used for heating later, and can also be supplied to gas generators for use or sale.
7) The main furnace is equipped with a pair of flow vents and a quick cooling device to reduce the temperature of the main furnace to less than 100 degrees in an hour.
Technical parameters of cracking equipment

Number	Name	Detailed introduction
1	Equipment Type	BH2200*6600	BH2600*6600	BH2600*7500	BH2800*6600
2	External Dimensions	Φ2200×6600	Φ2600×6600	Φ2600×7500	Φ2800×6600
3	Raw Material	Waste tires, rubber, plastics, acrylic and sludge
4	Structural Style	Horizontal rotation
5	24-Hour Capacity	25t	28t	32t	35t
6	24-Hour Oil Production	6.3t	11t	13t	14t
7	Working Pressure	Atmospheric pressure
8	Main Engine Speed	0.4 rpm/min
9	Equipped With Power	4KW	5.5KW	6.5KW	7.5KW
10	Cooling Mode	water-cooling
11	Cooling Water Consumption	6t/h	8t/h	10t/h	12t/h
12	Driving Mode	Motor Driven Internal Gear Drive
13	Heating Mode	direct
14	Installation Mode	Foundation
15	Noise	≤85dB
16	Working Form	Intermittent operation
17	Host Weight	22t	28t	30t	32t

product display
SERVICE
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines and lifetime maintenance for complete set
of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.3. Supply layout according to buyer's workshop and land, civil works information, operation
manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
