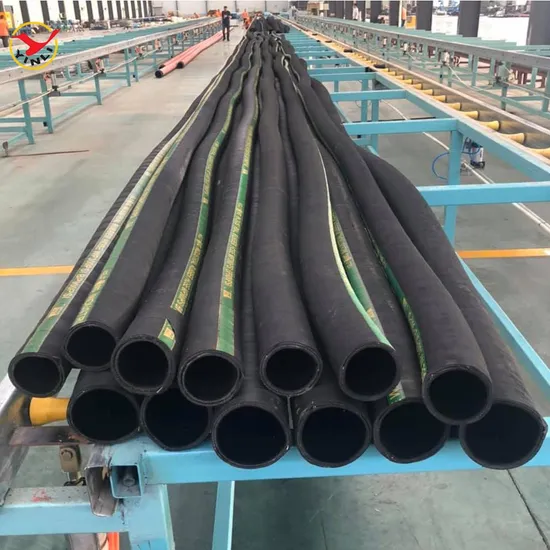

Wp 20 Bar Bp 60 Bar Black Rubber High Pressure Air Hose with Fire Resistance

Product Description

Product Description
Wp 20 Bar Bp 60 Bar Black Rubber High Pressure Air Hose with Fire Resistance•Application:Delivering industrial compressed air or water, has a wide range service in industry,manufacture, mining , construction project and air tools.
•Characteristics: flexible, aging- resistance, ozone resistance
•Working pressure:10−20 bar
•Safety factor: 1:3
•Temperature: -30−+80 ºC
•Standard: GB 118692
•Technical parameters:
Hose lining: SBR blend rubber
Reinforcement layer: tire cord with helix wire
Cover rubber layer: SBR and CR blend rubber

Corrugated cover air water rubber hose

Smooth cover air water rubber hose

Air water rubber hose assembly

ID		OD		W.P.		B.P.		Bending radius		Weight		Length
Inch	mm	Inch	mm	PSI	Bar	PSI	Bar	Inch	mm	bs/ft	kg/m	ft/roll	m/roll
1/2	13	0.9	23	150	10	450	30	2	50	0.31	0.46	328	100
5/8	16	1	26	150	10	450	30	2	50	0.36	0.53	328	100
3/4	19	1.1	29	150	10	450	30	5.1	130	0.4	0.6	65.6	20
7/8	22	1.3	32	150	10	450	30	7.1	180	0.46	0.69	65.6	20
1	25	1.5	37	150	10	450	30	8.3	210	0.63	0.93	65.6	20
1-1/4	32	1.7	44	150	10	450	30	9.4	240	0.79	1.18	65.6	20
1-1/2	38	2	50	150	10	450	30	11	280	0.91	1.35	65.6	20
1-3/4	45	2.3	58	150	10	450	30	14.8	375	1.14	1.7	65.6	20
2	51	2.6	65	150	10	450	30	16.5	420	1.39	2.07	65.6	20
21/2	64	3.1	78	150	10	450	30	24.8	630	1.72	2.56	65.6	20
NOTE: Other parameters are by your requirements.

Production flow
QC System
Control the qualtiy from the beginning to the end
1.More than 20 years experienced material egineer
2.High quality rubber and steel wire material
3.High Advanced rubber refining center
We keep data test and record in every step to control the dataHigh improved 60m lenth vulcanizer to ensure the good vulcanizationOnly well packaged goods are allowed to be put into warehouse Relative products
Steel wire braided hydraulic hose(one or two steel wire braided )
SAE 100R1AT/DIN EN853 1SN/DIN-EN857 1SC/SAE 100R1A/DIN EN853 1ST
SAE 100R2AT/DIN EN853 2SN/DIN-EN857 2SC/SAE 100R1A/DIN EN853 2ST
SAE 100R5/SAE 100R16/SAE 100R17/Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral
DIN EN856 4SP/SAE 100R9/SAE 100R12/DIN EN856 4SH/SAE 100R13/SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3/SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7/SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/PTFE HOSE
Industrial rubber hose
steam hose
Dredging hose
Air/Water hose
Fuel/oil hose
Water suction/delivery hose
Sandblast hoseComposite hose
Cement rubber hose
Concrete rubber hose
Chemical rubber hose
Food hose
Flexible stainless steel metal hose
Company Profile
FAQ
Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.
Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand which are not allowed.
Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.
Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.
Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.
