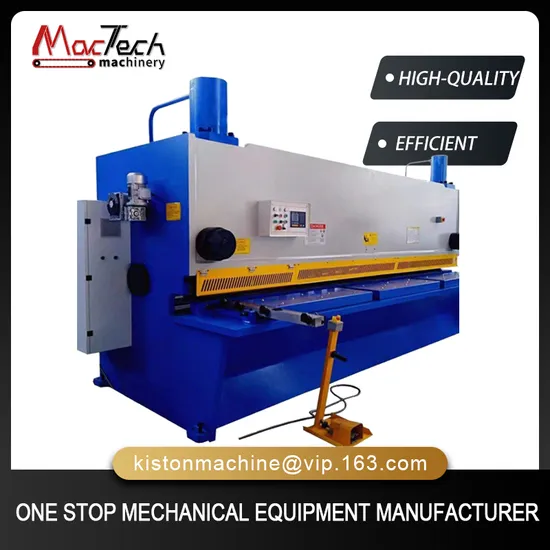

Guillotina Metal Sheet Cutting CNC Hydraulic Swing Beam Shearing Machine

Product Description

Product Description
1. The entire machine frame is processed by Germany SHW pentahedron processing center at one time.
2. Adopts Delem DAC360 CNC system:
precisely control backgauge
precisely control shearing stroke
precisely control shearing angle
precisely control blades clearance
precisely control number of jobs.3. Adopts Germany B O S C H integrated hydraulic system:
to simplify the pipeline
to avoid oil leakage
to improve the working stability
to beautify the machine appearance
4. The shearing angle can be easily adjusted through programming to avoid the deformation of the workpiece caused by cutting.
5. The upper beam stroke length can be automatically adjusted to realize the fast and precise cutting of short and small workpiece in order to improve working efficiency.
6. The CNC system will automatically adjust the blades gap according to the different sheet thickness and material to improve cutting quality. 7. Four-side shearing blade is adopted to improve the service life of blade which is much better than that of swing shear.
8,New design of backgauge,stable structure,improve Wear resistance, the crashworthiness a lot Certifications

Model	QC11Y-6x4000
Mild steel (45kg/mm2)	6
Cutting lebgth(mm)	4000
Stroke per minute(spm)	7-45
Back gauge range(mm)	750
Rake angle adjustment(°)	0.5-2.5
Depth of throat(mm)	70
Motor power (kw)	7.5
Weight (kg)	7050
L x W x H (mm)	4740x1805x2110

Company ProfileMacTech Machinery is a factory based machine manufacturer in China , specializes in machine tool building for almost 30 years, and main products focus on the overseas markets. Our customers are from over 40 countries in 5 continents.
We are able to offer both metal machining machines and metal forming machines to our valued customers. our machine supply include power press and hydraulic press brakes, Laser Marking Machines,CNC laser cutting machines, CNC Shear, Punch machines, welding machines as well as Hydraulic Rolling Machine and Iron Worker etc.
