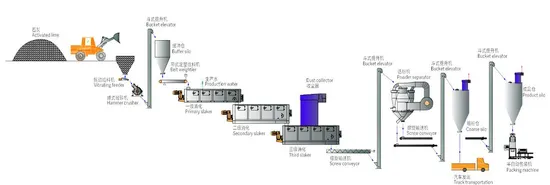

5 Tph Lime Slaking Machine for Calcium Hydroxide Plant

Product Description

5 tph Lime Slaking Machine for Calcium Hydroxide Plant
Production Description
Our Lime Slaking Machines had served numerous customers at home and abroad for over 20 years, system overall performance has been proven to be very reliable for various quality of lime(from shaft kilns or rotary kilns). the output Ca(OH)2 can meet requirements of metallurgy use and construction paint purposes. output moisture level and output sizes are adjustable according to different applying purposes; our experienced engineers are 24/7 available to help you achieve the optimal production performance if your lime raw materials are different sources and not consistent.
We keep improving the lime hydrator system based on latest technologies and ever-changing market demands. Give us a call or leave a message now if you need a lime slaking unit.
Indicative Technical Data:

Capacity (t/h)	Installed Power (Kw/h)	water consumption (t/h)	dust concentrate (mg/m3)	wastewater (m3/h)	Noise Level (Db)	Output moisture (%)	Power size (um)	residue slag (kgs/h)
1-2	78	0.5-1	<=30	None	<=80	<= 0.5-2.0 adjustable	100 - 600 mesh (adjustable)	100
3-4	96	1.2-1.5						150
5-6	120	2.0-2.5						250
6-8	145	3.2-4.0						400
8-10	195	4.0-5.0						500
12-15	280	6.0-8.0						750

Lime Rotary Kiln Features and Benefits:
1. Widely range of adaptability to raw and fuel materials;
2. Sturdy structure, smooth running, large capacity and good quality;
3. Energy conservation, waste gas as the second useful source, recycling economy;
4. come up to the discharging standard with low NO emissions;
5. PLC auto-control system, centralized control in productive process.
Lime Rotary Kiln Working Principle:
It mainly consists of kiln body, sealing device for kiln tail, main and auxiliary driving device, burning device, discharging device, speed regulation , instrument control, PLC programming, interlocking device and dust-extraction device, etc.
CaCO3 is the main ingredient of the limestone, and CaO is the main ingredient of lime. The basic principle of lime burning is to preheat materials with low temperature, quickly burn them with high temperature, utilize the perheater and the kiln to heat the limestone and compose them into CaO and CO2., The chemical equation as below:

The structure chracteristic of ourcompany is:
1. The rotary kiln shell design fully take into consideration of the corner at shell flexible supporting to extend the lifetime of refractory bricks and castings.
2. Adopt supporing roller bearing with big diameter and small ratio between length and diameter to improve the reliability. The bearing is automatic self-sligning bearing.
3. The better sealing effect of new type open gear hood sealing type.
4. The spring lamination overlying type lexible sealing, double layer spring lamination sealing increase the heat insulation layer to improve the reliability and lifetime.
Advantage of Our Service:
1) Design and build factory, install and run equipments, and train workers freely for our customer
2) Quality guarantee for 1 year's time, providing spare part at cheap price. Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/

Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Parameters of Rotary Kiln

Specifications (m)	Kiln dimensions			Output (t/h)	Rotation speed (r/min)	Motor power (kw)	Weight	Note
	Diameter (m)	Length (m)	Obliquity (%)				(t)
ø 1.4*33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	----
ø 1.6*36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	----
ø 1.8*45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	----
ø 1.9*39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	----
ø 2.0*40	2	40	3	2.5-4	0.23-2.26	37	119.1	----
ø 2.2*45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	----
ø 2.4*40	2.4	40	3.5	6.2-6.8	0.39-2.44	55	136.5	----
ø 2.5*40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	----
ø 2.5*50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	----
ø 2.5*54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	----
ø 2.7*42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	----
ø 2.8*44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Suspension preheating kiln
ø 3.0*45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	----
ø 3.0*48	3	48	3.5	25.6-29.3	0.6-3.48	100	237	Outside disassemble kiln
ø 3.0*60	3	60	3.5	12.3-14.1	0.3-2	100	310	----
ø 3.2*50	3.2	50	4	40.5-42	0.6-3	125	278	Outside disassemble kiln
