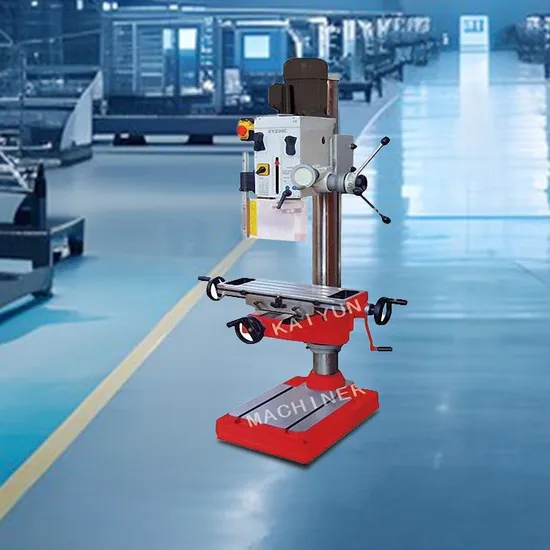

High Precision Portable Pillar Radial Small Milling Machine Manual Drilling and Milling Machine Kyz30c
| US$1,168.00-1,410.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KYZ30C
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max. End Milling Capacity
32mm
Taper of Spindle Bore
Mt3 or Mt4
Spindle Stroke
120mm
T-Slot Width
14mm
Diameter of Column
115mm
Motor
1.1kw
Transport Package
Wooden Case
Specification
KYZ30/KYZ30C
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
| Specification | ||
Model No. | KYZ30 | KYZ30C |
Max. drilling capacity | 32mm(MT3) | 32mm(MT3) |
| 40mm(MT4) | 40mm(MT4) | |
Max. end milling capacity | 32mm | 32mm |
Taper of spindle bore | MT3 or MT4 | MT3 or MT4 |
Spindle stroke | 120mm | 120mm |
Headstock swivel left & right | ±90° | ±90° |
Step of spindle speeds | 12 | 12 |
Range of spindle speeds | 75-3200mm | 75-3200mm |
Table size | 540X470mm | 600X190mm |
Table travel | X-360mm | Y-190mm |
T-slot width | 14mm | 14mm |
Table stroke up & dowm | 620mm | 520mm |
Diameter of column | 115mm | 115mm |
Max distance spindle to table | 715mm | 610mm |
Distance between spindle to column | 272mm | 272mm |
Max distance spindle to base | 1180mm | 1180mm |
Motor | 1.1KW | 1.1KW |
Packing size | 740X720X1830mm | 820X720X1830mm |
Net weight | 320kg | 340kg |
| Optional Accessories | ||
Power feed | 1 pc | |
Cooling system | 1 set | |
58pcs clamp kits | 1 set | |
Milling vise | 1 pc | |
Drilling vise | 1 pc | |
Keyless drill chuck | 1 pc | |
Features
1.Milling, drilling, tapping boring and reaming;
2.head swivels 360 degree. Table swivelled 180 degree and tilted 45 degree;
3.Super high colum;
4.Equipped with cross table or Big&wide table; Cross table may be elevated up and down by geared crank handle;
5.Micro feed precision;
6.Heavy-duty tapered roller bearing spindle;
7.High precision ground spindle and larger quill etc.
