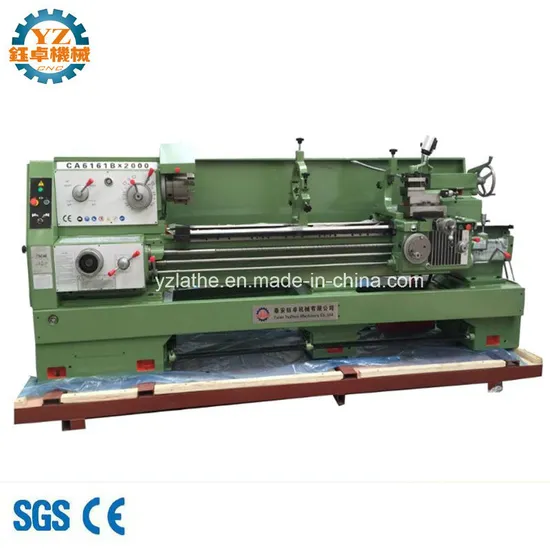

Factory Low Price China Conventional Lathe Machine Ca6150

Product Description

China Machine Tool Metal Cutting Lathe Machine CA6150

Item		Unit	CA6150
1	Max. swing over bed	mm	500
2	Max. swing over carriage	mm	300
3	Max. length of work piece	mm	750
4	Width of bed	mm	400
5	Section of turning tool	mm	25x25
6	Spindle speed	rpm	16-1400 (24 steps)
7	Hole through spindle	mm	52
8	Spindle head form		ISO(GB)C6
9	Spindle taper		MT6
10	NO. of feed		64 kinds
11	Range of metric threads		(1-192mm)44 kinds
12	Range of inch threads		(1-24tpi)21 kinds
13	Range of module threads		0.25-48(module 39 kinds)
14	Range of diametral pitc threads		1-96DP(37 kinds)
15	Max. tailstock spindle travel	mm	150
16	Tailstock spindle diameter	mm	75
17	Taper of tailstock spindle center hole		MT5
18	Main motor power	kw	7.5
19	Machine size	mm	2440x1140x1750
20	Weight	kg	2060

Machine Detailed Photos
Standard Configuration:
(1) 3-jaw chuck.
(2) Four station electric tool post.
(3) Manual tailstock.
(4) Cooling system.
(5) Lighten system.
(6) Automatic lubrication system.
Optional Configuration:
(1) φ320mm jaw chuck and chuck holder.
(2) Faceplate.
(3) The events leading.
(4) The center frame.
(5) With the cutting tools.
After-sale Services:
Warranty is one year.
We would offer the parts (quality problem) free of charge during this period, freight collect.
