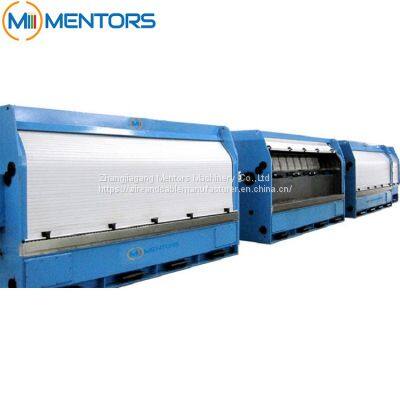

Rod Breakdown Machine with Individual Drives

Product Details

Product Description

Product Description
1-Application:
Rod Breakdown Machine with Individual Drives is used for drawing copper and aluminum or alloy wire with high speed.
2-Feature:
1)Individual drives
2)Inlet wire: 8 or 9.5mm, outlet wire: 1.2~5.0mm.
3)Finished product: Round wire, S shape wire, Z shape wire, trapezoidal type wire.
3-Parameters:

SY-LSD450 Individual Motor Controlled ROD Breakdown Machine
Machine type		LSD450/13
Drawing Capstan Dia.(mm)		φ450
Max. Die No.		13
Inlet Dia.(mm)	Copper	φ8
	AL, Al Alloy	φ9.5
Outlet Dia. (mm)	Copper	φ1.2-φ4.2
	AL, Al Alloy	φ1.7-φ5.0
Max.Drawing Speed (MAX) (m/s)		25
Single Motor Power (KW)		37 / 55 (AC)
Capstan Arrangement		Horizontal Type
Lubrication Type		Full Immersion
Take-up Type (Optional)		Double Take-up/ Single Take-up / Coiler
Optional Equipment for copper wire		Horizontal continuous annealing
On-line Continuous Annealing Device
Type	450T
Annealing Wire Dia.( mm )	φ1.2 ~ 3.5
Annealing Voltage ( V )	0 ~ 60
Annealing Current ( A )	0~6000A (DC)
Max. Annealing Speed ( m / s)	25 m/s

4-Advantage:
1)Every drum is run by single motor with drivers.
2)Door up and down automatically make threading easily.
3)Tension rate can be adjustable according to different raw material.
4)Quick die change system.
5)Full immersion guarantee the wire's cooling and lubrication.
6)Drum box body is separated with transmit part, mechanical labyrinth seal type, to avoid drawing oil and gear oil mixed.
7)Three section AC annealing, full digital control, make wire soft with good quality.
5-Delivery time: 90 working days
6-After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer's roundtrip flight tickets, board and lodging, the security as well as each person of daily wage.
7-Guarantee: 12 months since shipping date(exclude easily wearing part)
