New Design Digital Display Bolt Tightening Power Torque Tools Electric Torque Wrench Electrical Torque Gun Machine
| US$2,298.00-8,860.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TYDEW-S series
Impact Rate
.
Torque
100-12000n.M
Brand
Tyd
Power Supply Type
AC Power
Power Supply Voltage
220~240V/50~60Hz
Battery Voltage
N/a
Unloaded Speed
32000rpm
Power Source
Electricity
Product Name
Bolt Tightening Tools Electric Torque Wrench
Model Number
Tydew-08s/16s/20s/28s/40s/60s/80s/100s/120s
Torque Range
100-12000n.M
Motor Type
Other
Grade
Industrial
Customized Support
OEM, ODM
Brand Name
Tyd
Max. Torque
12000nm
MOQ
1PCS
Certificate
CE
Warranty
1 Year
Transport Package
Plastic Box Packaging
Specification
290*72*272mm
Trademark
TYD
Origin
Wuhan, China
HS Code
84678990
Production Capacity
380set/Month
Product Description
New Design Bolt Tightening Tools Electric Torque Wrench Machine PriceModel: TYDEW-S series
Products Description

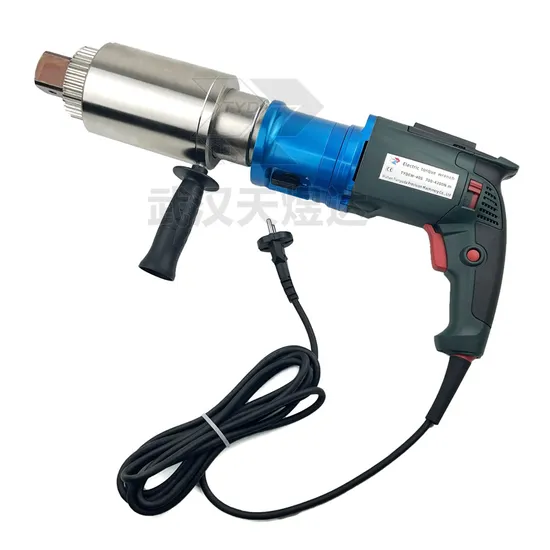

TYDEW series electric torque wrench is a hand-held rotary electric tool with a reaction arm, which can set the torque accurately, used to complete the tightening/removing work of nuts or bolts, the driving part adopts high-efficiency AC motor, high-speed intelligent chip control, LCD display , the mechanical part adopts planetary gear reduction mechanismInput: 220-240V AC,50/60Hz
Torque: 100Nm-12000Nm
Digital control: LCD display Product Parameters
| Model | Min torque(N.m) | Max torque(N.m) | Drive S(mm) | Diameter D(mm) | Length L(mm) | Width K(mm) | Length M(mm) | Weight(Kg) | 2rd torque range(N.m) | 1st torque range(N.m) | 1st Rotating speed rpm | 2rd Rotating speed rpm |
| TYDEW-08S | 100 | 800 | 3/4" | 78 | 426 | 205 | 174 | 5 | 100~595 | 600~800 | 13.00 | 30 |
| TYDEW-16S | 200 | 1600 | 1" | 78 | 452 | 205 | 200 | 6.5 | 200~790 | 800~1600 | 4.70 | 12.20 |
| TYDEW-20S | 200 | 2000 | 1" | 78 | 452 | 205 | 200 | 6.5 | 200~790 | 800~2000 | 4.70 | 12.2 |
| TYDEW-28S | 400 | 2800 | 1" | 88 | 485 | 205 | 233 | 8.7 | 400~1180 | 1200~2800 | 2.30 | 6.30 |
| TYDEW-40S | 700 | 4200 | 1-1/2" | 99 | 508 | 205 | 256 | 9.6 | 700~2075 | 2100~4200 | 2.20 | 5.1 |
| TYDEW-60S | 1000 | 6000 | 1-1/2" | 113 | 526 | 205 | 274 | 15.4 | 1000~2475 | 2500~6000 | 0.90 | 2.60 |
| TYDEW-80S | 1200 | 8000 | 1-1/2" | 120 | 536 | 205 | 284 | 16.8 | 1200~2450 | 2500~8000 | 0.70 | 1.8 |
| TYDEW-100S | 2000 | 10000 | 1-1/2" | 128 | 569 | 205 | 317 | 18.3 | 2000~3450 | 3500~10000 | 0.63 | 1.50 |
| TYDEW-120S | 2000 | 12000 | 1-1/2" | 128 | 583 | 205 | 331 | 18.5 | 2000~3950 | 4000~12000 | 0.63 | 1.5 |
* High output and repeat accuracy: ± 5% and ±3%.* Preset torque and automatic shutoff when reaching the setted torque.* Single-chip intelligent torque control system with LCD display.* With single speed gearbox, light weight,small size and high speed,and easily operated.* Very suitable for continuous operation in production assembly and maintenance.* Free connection of Power handle and drive unit, could be rotated 360°.* Higher efficiency whether tighting or removing bolts and nuts than hydraulic torque wrench.* Portable and durable design, low noise, with overload protection.* After-sales service: 1 year guarantee period, life-long maintenance.* Supply scope :1 pcs torque wrench,1pcs reaction arm,1 copy operating instructions,1 copy test report..Why Choose Us
