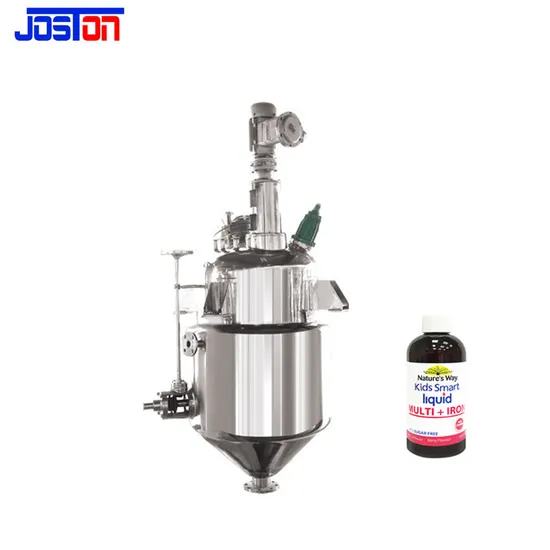

Joston Purifying Oral Liquid Food Health Products Precipitation Process Sediment Tank (DIACOLATION TANK)

Product Description

Usage
Sediment tank is used in purifying oral liquid, food health products etc. it is the key equipment of precipitation process. It is also suitable for freezing, normal temperature precipitation and solid-liquid phase separation of suspensions in other pharmaceutical, chemical, food, oral liquid, health products.
Working Principle
1). According to the process requirements, the concentrated solution and solvent shall be put into their respective proportions and the chilled brine or cooling water shall be turned on jacketed of the sediment tank . The mixing shall be uniform. When the required temperature of the feed liquid is reached, the mixing shall be stopped. The chilled brine or cooling water shall be continuously introduced into the jacket to ensure the required liquid temperature.
3). After the sedimentation is completed, open the supernatant discharge valve, and use the self-priming pump to extract the supernatant. the supernatant level will gradually drop with the supernatant level, After the supernatant is pumped out, At this time, the slag outlet can be opened to discharge the sediment. According to different precipitates of different materials, the bottom butterfly valve can be opened first to discharge the thinners.
Technical description

Model Item	CCG-500	CCG-1000	CCG-2000	CCG-3000	CCG-6000
Tank volume:L	500	1000	2000	3000	6000
Jacket cooling area M2	2.8	4.2	7.5	10	15.5
Inside shell temperature C	-90 ---room temperature
Inside shell pressure MPa	-0.9/0.3
Jacket pressure MPa	0.3
Agitator speed RPM	0-150 (For propeller type agitator mixer )
Motor power Kw	1.1	1.5	2.2	4.0	7.5

Product drawings
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
