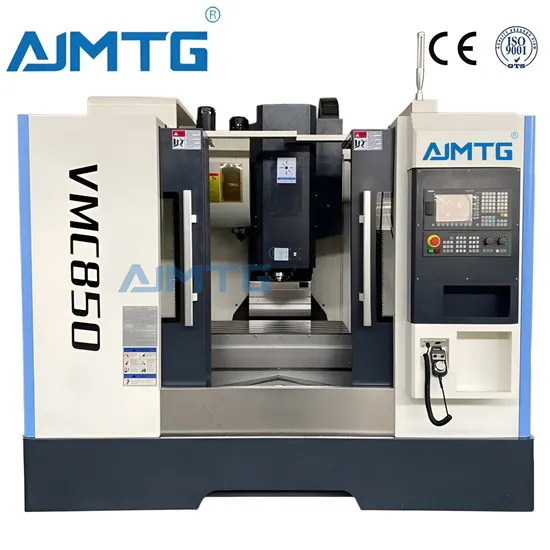

Taiwan 3-Year Warranty CNC Vertical Machining Center
Basic Info.
Model NO.
VMC650 VMC855 VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Worktable Size
500X1000, 600X1200
Transport Package
Good Wooden Case
Specification
2800x2500x2700
Trademark
AJMTG
Origin
China
HS Code
8457101000
Production Capacity
1200 Sets Per Year
Product Description
Company ProfileProduct Description
Nantong AJ Industry Limited offers the VMC855(H), VMC1060(H), VMC1160 3/4/5-axis Horizontal Metal Cutting Mini Vertical Drilling CNC Milling Machine CNC Machining Center VMC. Explore our Taiwan 3-Year Warranty CNC Vertical Machining Center for precision and reliability.
Product Parameters
| Machining range | X axis travel | 800mm |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Spindle nose to worktable | 150-650mm | |
| Spindle to column guide | 550mm | |
| Worktable | Worktable size | 1000x500mm |
| T slot | 18X5X90mm | |
| Weight load | 500kgs | |
| Spindle specification | Spindle | 8000rpm belt drive Japan make |
| Spindle motor | 7.5kw | |
| Spindle taper | BT40(Ø140) | |
| Feed system | G00 fast feed | 48/48/36m/min |
| G01 cutting feed | 1-10000mm/min | |
| Servo motor | 2*2*3kw | |
| Tool system | Capacity | 24 tools arm type Taiwan make |
| Main parts | Make | |
| Ball screw | Taiwan C3 grade diameter 40mm, pitch 12/16mm | |
| Linear guide | Taiwan HIWIN or Germany 35mm pin roller type | |
| Spindle | Taiwan diameter 140mm , 8000 rpm | |
| Tool magazine | Taiwan BT40-24 tools arm type | |
| Bearing for 3 axis | Germany or Japan Nachi, Screw Angle Support Bearing 30X62 | |
