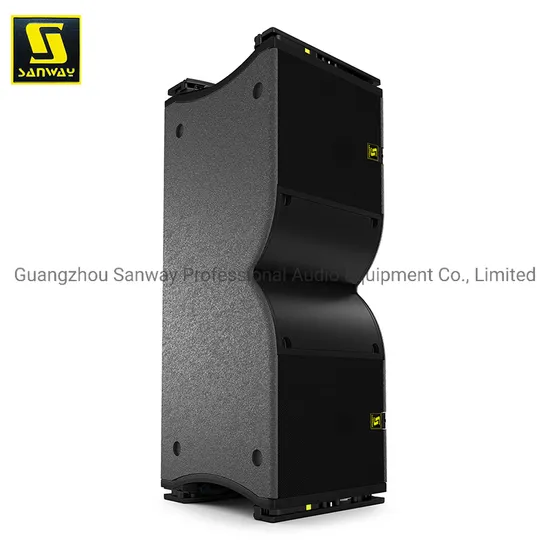

K3 Dual 12 Inch Passive Full Range PRO Line Array Audio System for Outdoor Concert Events

Product Description

K3 Dual 12 Inch Passive Full Range Line Array Audio System for Outdoor Concert 2x12 inch neodymium speaker drivers
1x4 inch neodymium speaker drivers
First grade Russian birch plywood
Polyurea pain
Overview:

K3 full range line array speaker is designed for vocal and music reinforcement as a main audio system in many applications.

K3 line array audio system features with 2x12 inch neodymium low frequency speaker driver and one 4 inch neodymium high frequency speaker driver, deliver excellent bandwidth, and the enhanced LF profile fits its size and high output capacity used as a stand-alone line source.

K3 passive line array system consists of Panflex to increase flexibility. A single shell provides four horizontal directivity modes: 70° or 110° symmetrical or 90° asymmetrical on both sides. Ultra-precise audience coverage and smooth SPL distribution are granted by Panflex and large combinations to select the angle between elements.

K3 long throw line array speaker cabinet is made by rugged and high density first grade Russian birch plywood with polyurea finish. It integrates an efficient captive rigging system with visual security for safe and easy deployment. A comprehensive set of handling and transportation accessories facilitate storage, truck loading and multiplying deployment options.

Features of K3 concert line array:

2x12 inch neodymium speaker drivers
1x4 inch neodymium speaker drivers
First grade Russian birch plywood
Polyurea paint

Specification of K3 outdoor line array:

Usable bandwidth (-10dB)	42 Hz - 20 kHz
Maximum SPL	143 dB
Coverage angle (-6 dB)	Horizontal: 110°/70° symmetric ; 90° asymmetric
	Vertical: depends on the number of elements and array curvature
Transducers	LF: 2 × 12'' neodymium cone driver; Bass-reflex, L-Vents HF: 1 × 4'' diaphragm neodymium compression driver; DOSC waveguide, Panflex
Nominal impedance	LF: 2 x 8 ohms HF:16 ohms
RMS power handling	LF: 2 x 450 W HF: 140 W
Connectors	2 × 4-point speakON
Weight (net)	43kg
Finish	Dark grey brown Pantone 426 C Polyurea paint
Enclosure	First grade Russian birch plywood
