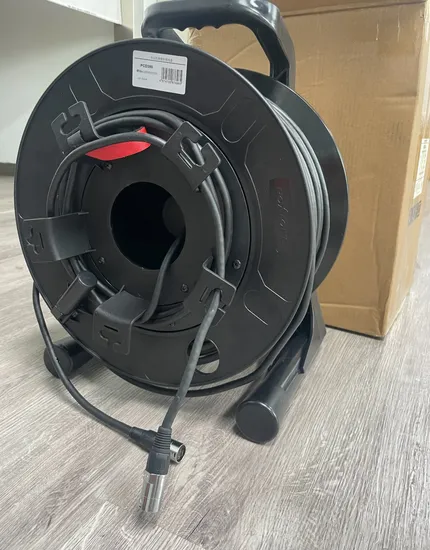

SFTP CAT6A Network Multi Cable with Cable Reel Drum 100m
| US$160.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
Cat6a Cable Reel 100m (D155)
Cover Material
PVC
Type
CAT6 CAT6A Cat6e
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC, VDE
Model
FTP/SFTP/Shielded CAT6A
Brand
Fulsan
Lengthes
30m, 50m, 70m, 80m, 100m
Connector
RJ45 Male to RJ45 Male
Jacket
LSZH PVC PE
Gauge
32AWG 30AWG 28AWG
Material
Copper
Pin
8pin
Feature
Explosion-Proof
Computer Cable Type
Data Line
Printer Cable Type
RJ45
Power Cable Type
8p8c LAN Extension Cable
Transport Package
Clamshell Packing, Printing Polybag, Gift Box
Specification
UL, CE. RoHS
Trademark
FULSAN
Origin
China
HS Code
854442
Production Capacity
10, 00, 000PCS Per Month
Packaging & Delivery
Package Size
40.00cm * 20.00cm * 20.00cm
Package Gross Weight
12.500kg
Product Description
50M 80M 100M Cat6a Cat7 Network ethernet Lan cable reel RJ45 patch cable cord retractable FTP shielded patchcord data cables Model Number FS-C6A Type CAT.6a / CAT.7 Lan cable reel Place of Origin Zhejiang, China Number of Conductors 8 Data Performance Cat.6a / Cat.7 Type of connector RJ45 PLUG / RL45 keystone Jack Spec. of cable 4pair OFC pure copper twisted cable Shielded type Shielded Lan cable OD. of cable 7.5 +/-0.2mm Color Gray / Blue / Orange / Red ... Customized Rated voltage below 36V QC testing F luke testing Standard IEC 11801 ,ANSI/TIA568C.2, IEC/ISO 61156-5,EN50173 Certificate ETL certifiedDescription: Cat.6a cable reel Spec of cable: 4pair twisted;100% Oxygen-free Copper shielded Cat6a cable
OUTER DIAMETER: 7.5±0.2MM for Cat6a cable
Filler:PE Cross
JACKET:PVC
Length: 50M 60M 70M 80M optional
Color: Gray / Blue / Red /Black / White ... can be customized
*umidity:10% ~ 90%RH
Working Temperature:-20ºC~ 60ºC
OEM Available Cable Performance:CAT.6a up to 500 MHz pass F luke testing
Frequency : 1250MHz (common standard)
General Characteristic :
Characteristic Impedance :100±10
Nominal Velocity of Propagation : 68%
Maximum Mutual Capacitance : 5.6 nF/100m
Maximum Capacitance Unbal ance : 330pF/100m
Maximum DC Resistance : 7.5O/ 100m
Maximum Resistance Unbalance : 3%
Maximum Propagation Delay Skew: 30ns/100m ( 1-125MHz )
Maximum Propagation Delay: 536 ns/100m @ 100MHz
Minimum Bending radius: 10×cable outer diameter
Volta ge Rating : 60Vrms
Maximum Pulling load: 80N
Working Temperature (-20) (+60)
Storage Temperature: (-5) (+50)
Flame Retardancy : IEC 332-1( FRPVC &LSOH jacket )
IEC 332-1 & IEC 332-3C (FR LSOH jacket) .
Connector: RJ45, shield
Cable Spec: Cat 5e/6 Calbe
Meet TIA/EIA-568-A
Pin Out: 568A-568A
568B-568B
568A-568B
Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
| Product: | Patch cord |
| Category: | Cat 5e, Cat6, Cat 6a, Cat7 |
| Shirleding: | UTP, FTP, SFTP, SSTP |
| Connector | RJ 45 connector |
| Conductor | Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel) |
| Guage | 22AWG, 24AWG, 26AWG, 28AWG, 30AWG |
| Insulation | HDPE |
| Shirleding | Aluminum foil and Braiding |
| Jacket | PVC, LSZH. |
| Color | Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^ |
| OD | 5.0mm, 5.2mm, 5.4mm, 5.7mm ... |
| Length | 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc |
| Compliance | ATC, UL, ETL, CE, RoHS, REACH |
| Application | 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc. 2.Connect 2 XBOX consoles for multi player gaming 3.ADSL, Modem with Hub or Router |
| Compatibility | 100 Base-T4 100 Base-TX 100VG-AnyLAN 1000 Base-T(Gigabit Ethernet) 155 Mbps ATM 622 Mbps ATM |
| Package | Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized |
| ELECTRONICS | |
| QC | 100% open and short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M ohm min |
| Contact Resistance | 3 max |
| Working Temperature | -25C-80C |
