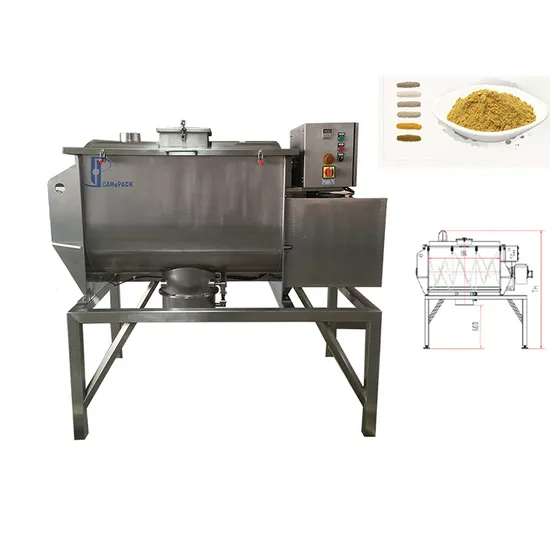

Salt Powder Mixing Machine, Ribbon Mixer

Product Description

Introductions:
The Horizontal Ribbon Mixer consists of U-Shape tank, spiral and drive parts. The spiral is dual structure. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.

Our DP series Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made as open in order to cleaning and change parts easily.

Specifications:

Model	DP200	DP300	DP500	DP1000	DP1500	DP2000
Full Volume	200L	300L	500L	1000L	1500L	2000L
Turing Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Overall Size(mm)	1370x834x1647	1550x970x1655	1773x1100x1855	2394x1320x2187	2715x1397x2313	3080x1625x2453
Total Power	4KW	5.5KW	7.5KW	11KW	15kw	22kw
Power Supply	3P AC208-415V 50/60HZ

Features:

1:With U-shaped horizontal trough and a specially double Helical Ribbon Agitator.
2. A in-feed duct on the top cover of the U Shape trough for product feeding .Liquid sprayer as a option as per the customer's needs.

3. 200-300-500-1000-1500-2000L Available

4.There is a flap valve on the discharging opening (Pneumatic or manual control),The arc type valve with embedded design and level with the trough inner wall which can effectively eliminate mixing dead angle and pile-up.

5.Trough surface covering with sealing strips which can prevent from leakage in the operation.

6:Unique disconnected ribbon design will mix the product with high speed ,uniformity and consistency.

7: A sleeve injecting with cold or hot stuff can be added to cover the trough body .Which can help to cool down or heat up the products inside the trough.

8:The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge.

9: With full stainless steel structure and SUS304 material contact parts

10: With power box and timer 0.01seconds--9999h setting;
