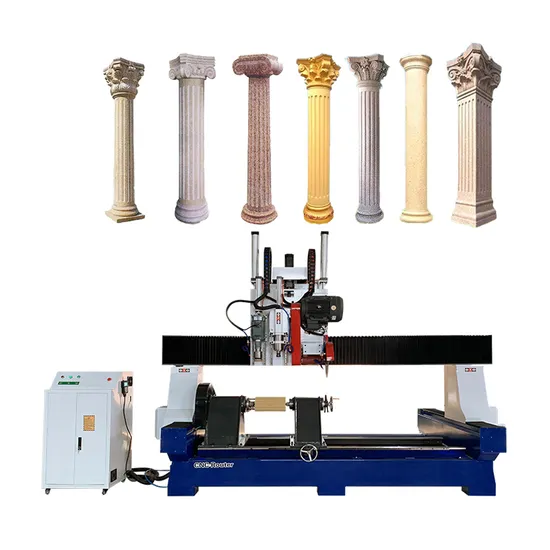

Factory Price! CNC Stone Lathe Machine with Saw Blade & Milling Head for Making Marble Granite Roman Columns Pillars

Factory Price! CNC Stone Lathe Machine with Saw Blade & Milling Head for Making Marble Granite Roman Columns Pillars

US$1,111,111.00 1 Set (MOQ)

Basic Info.

Model NO.
JCS8017R
Function
Cutting, Engraving, Milling, Polishing
Application Material
Marble
Automation
Automatic
Control
CNC
Motor Power
7.5kw Spindle
Engraving Head Speed Adjustability
Wide Adjustable Range
Current
AC
Application
Stone Industry, Making Marble Granite Roman Columns Pillars
Customized
Customized
Product Name
CNC Stone Lathe Machine
Working Size
800mm Diameter *1700mm Length (Can Be Customized)
Optional Working Size
700mm Diameter *3000mm Length
Milling Head/Sindle Power
5.5kw/7.5kw/11kw Water Cooling
Saw Blade Unit
Yes
with Saw Disc
for Fast Rough Machining
with Spindle/Milling Head
for Engraving Details
Motor
Stepper/Servo Motor
Control System
4 Axis DSP/Ncstudio
Lubrication
Automatic
Usage
Making Marble Granite Roman Columns Pillars
Option 1
Polishing Pad
Option 2
Same Machine with 3 Axis / 5 Axis
Option 3
Also Can Process Aluminium, Wood, Fiberglass...
Transport Package
Wrapped by Film, Fastened Into Container
Specification
800mm Diameter *1700mm Length (can be customized)
Trademark
CHAODA
Origin
China
HS Code
8465990000
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
420.00cm * 220.00cm * 200.00cm
Package Gross Weight
3500.000kg

Product Description

Factory Price! CNC Stone Lathe Machine With Saw Blade & Milling Head for Making Marble Granite Roman Columns Pillars
Heavy duty steel structure, keep machine with very good stability. Adopt good quality machine parts,to make machine with high performance and durability. With electrical spindle, to make engraving. With saw blade unit, to make fast roughing/grooving. The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars. The working size can be customized according to customers' specific requirements. There are 3 axis/5 axis same machines for choosing.
Model No.
 JCS8017R
Lathe bed
heavy duty steel structure
Working size
 800mm diameter, 1700mm length (can be customized)
Spindle power
 5.5 /7.5 /11KW
Spindle rotating
 12000 /18000 /24000rpm
Max.travelling speed
 30m/min
Max.working speed
 15m/min
Control system
 4 axis DSP/Nsctudio
Motor
 Stepper /Servo
Saw blade unit
 yes
Polishing pad unit
 yes
Auto oil system
 yes
Voltage
 AC380v,3 phase,50Hz


It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Fiberglass, Acrylic, Wood, PVC, EPS Foam,Aluminum composite panel, Aluminum block, Copper and so on.

Application: Marble Granite Stone Roman Columns Corbel Pilasters Cylinders Pillars...
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
