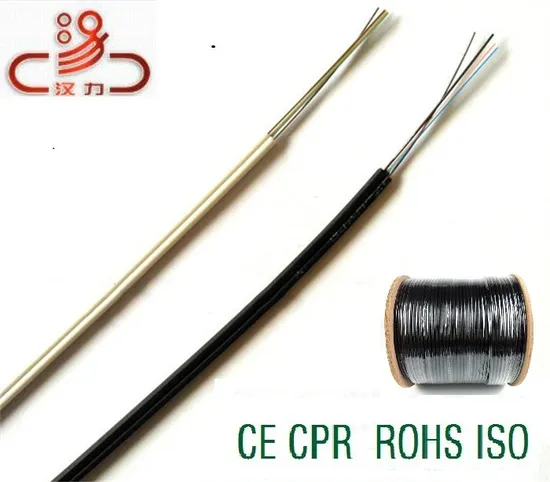

Fiber Optical Cable 2 Core FTTH Drop Wire Optical Fiber Cable Steel Wire

Product Description

Product Features:
1.The optical fiber has small transmission loss and low chromatic dispersion
2. The optical cable has good flexibility and capability of resisting bending.
3. The optical cable has excellent mechanical properties and environmental performances due to reasonable design and precision control of the redundant length and the cabling method of the optical fiber in the loose tube.
4. The loose tube filled with gel and can make ensure the fiber transmission stability for long time.
5. The parts outside the reinforcing member and in the cable conductor are full of water-blocking cable paste; therefore the damp-proof and water-blocking effects of the optical cable can be ensured.
6. 9/125 single-mode fiber, 50/125 multimode fiber, 62.5/125 multimode fiber and OM1,OM2,OM3 multimode fibers can be chosen.
Application Standard:
ISO/IEC 11801:2008,YD/T901-2009
Optical Properties:

Fiber Type	Single mode:B1.3 (9/125um)
	Multimode:A1a,A1b (50/125 um,62.5/125 um) or 0M1,OM2,OM3
Attenuation(dB/km)	Single mode:1310≤0.36, 1550≤0.22
	Multimode: 850≤3.5,1300≤1.5

Physical Properties:

Dynamic / Static bending radius	20times cable Dia./10times cable Dia.
Allowable Short/Long term crush resistance(N/100mm)	1000/300
Allowable Short/Long term drawing force of optical cable (N)	1500/600
Packet no roundness	≤1%
Suitable temperature	-40°C~+60°C
Number of core	2-288cores
Optical fiber cable color	Black
