Intrinsically Safe Integrated Multi-Functional Miner Cap Lamp Kl3lm (A)

Product Description

KL3LM(A) Intrinsically Safe Integrated Miner's Cap Lamp
Main characteristics
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting.
2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable.
3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS.
4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing. Technical parameters

Item			Specification
Battery type			Li-ion
Rated capacity			3Ah
Rated voltage			3.7V
Lighting time			>12h
Main light source	Rated current		200mA±10mA
	Maximum illuminance ( at 1m away from lamp)	When lighting begins	≥4500lx
		After lighting for 11h
Cycle life of battery			≥500 cycles
Charging time			≤6h
Explosion proof type			Ex ia I Ma
Protection grade			IP65
Dimensions			84×68×73mm
Weight			≤200g

Matching information

Standard fittings

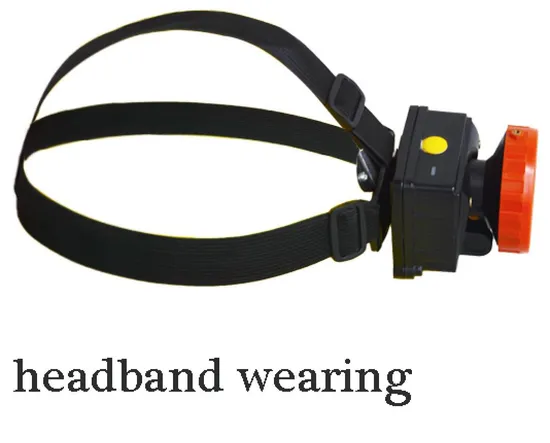

KZC1C charger, headband
