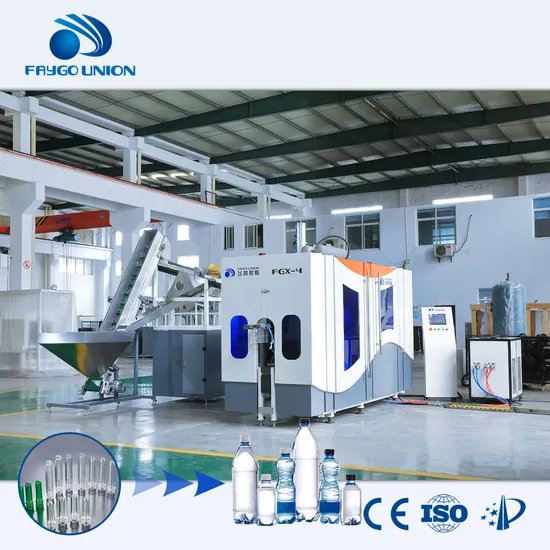

High Speed Stable Pet Bottle Blow Molding Machine with Servo Motor Controller

Product Description

Product Description
High Speed Stable Pet Bottle Blow Molding Machine with Servo Motor Controller
Specifications
1.Model: FG-6
2.Capacity:9000-10000B/H
3.Bottle type:200-2000ml
Product Parameters
Detail specification of FG-6 PET bottle blowing machine

Main Parameter
Model		FG-6
Capacity		Depend on bottle design	9000-10000PCS/H(@500ml, 17g bottles)
Applicable Preform		Height	<330mm
		Neck	20mm-25mm
Applicable Bottle		Neck	20-25mm
		Volume	Max. 2Liter
		Height	Max. 328mm
		Diameter	Max. 105mm
Electric consumption		Install power	51kw
		Heating oven powder	46kw
		Heating Oven operating power	26kw
Air consumption		Pressure	8m3/min 3.0MPa
		Capacity	8m3/min 3.0MPa
Mold Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	45L/min
Oven Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	26L/min
Machine Dimension		L*W*H	3900*900*2500mm
		Weight	3500kg
Capacity: 7000-7500BPH(based on 1L)
Max. Volume: 2 Litter Total Size: Blowing Main machine: 3.6*1.3*2.3m Sorting machine: 2*1.5*1.5m/Loader: 3*1*1.5m
Main electrics
Pneumatic part& Cylinder	Valve			German
Electric part	PLC			Japan Mitsubishi
	Servo System			Japan Panasonic
	Frequency inverter			Japan Mitsubishi
	Operating system			Japan Mitsubishi
	Touch screen			Japan Mitsubishi
Blowing	Valve			Japan Parker
One-way Valve				German
Throttle Valve				German
Reducing Valve				German DURAY
Note: All the electrical components adopts CE, UL, CCC approved international Advanced high-tech product

I. Brief Introduction:
FG6 is the new generation of linear blowing machine. Comnpared with traditional blowing machine, It has 3 improvement:
1)High speed: China first blowing machine whose single mold speed can reach 1800 BPH. FG6 has 6 cavities, production speed is 9000-10000BPH.
2) Energy saving: It has only 2 lamp boxes, at least 20000USD can be saved per year, electrical ammeter is equipped, you can know how much every single bottle costs you.
3) High Reliability: Machine adopts modularized design principle, the movement is integrated in 3 sets servo motor, which promises this machine will have good condition under full load operation.

II. Technical Features:
1. Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed servo motor, which greatly shortens the blowing cycle and accelerates the spped.
2. Minimize distance of heating heads,maximize the heating efficiency.
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30% consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3. Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4. Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.

One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
Company Profile
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines.
It occupied an area of 18000 square meters. With years of development,
its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person,
Faygo Plast alwasy provide customers with high quality machines.
Warmly welcome to visit our factory (next to Shanghai)!
Our Service
1.The machine will be tested and checked at our workshop before delivery.
2.After one year, we will supply accessories are provided only one the cost price.
3.Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4.Free production technology and process configuration.
5.We can help you to design the product line, workshop and provide turn-key project.
6.Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7.Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
