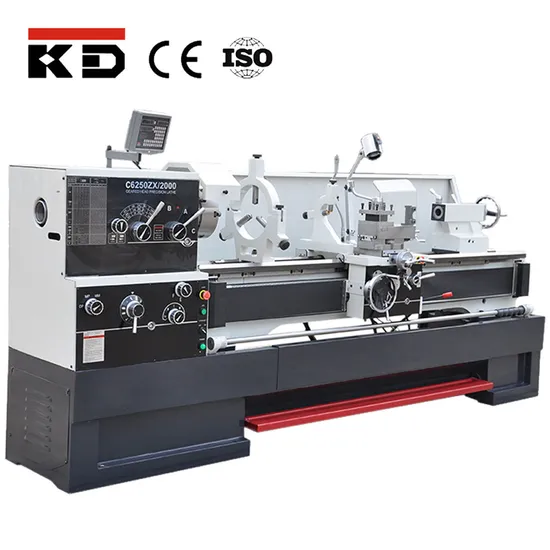

Harden Gear Headbox Metal Lathe Machine Gh-1440zx
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Gh-1440zx
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Delivery
2 Months After Order Confirmed
Color
Made Tp Order
Handwheel
Right or Left Handwheel
Voltage
Optional
Spindle Bore
80mm
Swing Dia Over Bed
460mm
Bed Width
336mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
| MODELS | DC1440-E DC1460-E | DC1640-E DC1660-E | DC1840-E DC1860-E DC1880-E | DC2040-E DC2060-E DC2080-E |
| CAPACITY | | | | |
| Max. swing over bed | 360mm | 400mm | 460mm | 500mm |
| Max. swing over cross slide | 200mm | 250mm | 290mm | 330mm |
| Max. swing over gap | 600mm | 660mm | 700mm | 740mm |
| Distance between centers | 1000/1500mm | 1000/1500/2000mm | ||
| Max turning length | 850/1350mm | 850/1350/1850mm | ||
| Bed with | 336mm | |||
| HEADSTOCK | | | | |
| Spindle bore | 80mm | |||
| Spindle mount | D1-8 | |||
| Taper bore of spindle | MT-7 | |||
| Steps of spindle speed | 12 | |||
| Range of spindle speed | 42-1800rpm | 25-1800rpm | ||
| GEARBOX | | | | |
| Range of longitudinal feeds | 0.04-2.46mm | |||
| Range of cross feeds | 0.02-1.23mm | |||
| Number of inch threads | 61 | |||
| Range of inch threads | 1-5/8 - 72 T.P.I. | |||
| Number of metric threads | 24 | |||
| Range of metric threads | 0.5-20mm | |||
| Number of D.P threads | 45 | |||
| Range of D.P threads | 96-3 1/4D.P | |||
| Number of module threads | 20 | |||
| Range of module threads | 0.25-10M.Pmm | |||
| CARRIAGE | | | | |
| Max. tool size | 25x25mm | |||
| Max. compound slide travel | 130mm | |||
| Max. cross slide travel | 280mm | 310mm | ||
| TAILSTOCK | | | | |
| Tailstock sleeve travel | 130mm | |||
| Taper in tailstock sleeve | MT-5 | |||
| OTHERS | | | | |
| Main motor | 5.5kw (7.5HP) | |||
| Net weight | 2250/2550kg | 2300/2600kg | 2350/2650/2900kg | 2750/3000/3250kg |
| Overall dimension (LxWxH) | 2310/2810 x1050x1310mm | 2310/2810 x1050x1340mm | 2310/2810/3320 x1050x1370mm | 2310/2810/3320 x1050x1390mm |
PRODUCT CONFIGURATION
