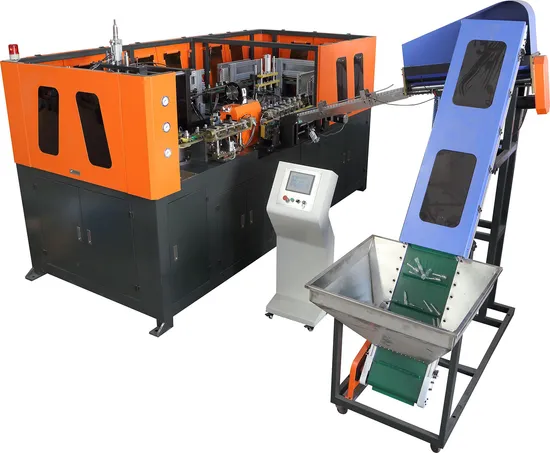

4 Cavity Fully Automatic Plastic Stretch Blow Moulding Machine

Product Description

4 Cavity fully Automatic Plastic Stretch Blow Moulding Machine:
1. BM-A4 Full automatic bloing bottle machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Reasonable design, full automatic control, save power and labor.
3. Adopt high quality components.
4. Feeding system carries the performs by robot automatically.
5. Infrared oven heater adopts the quartz lamp to heat the PET tube.
6. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.
7. We have perfect service after sales.
Main part:
Pneumatic part: Valve/ Cylinder- AIR TAC/SMC
Electric part: PLC/ Operating system-LG, Relay-OMRON, Infrared thermometer-America Raytek,
Note: All of the electrical components adopts CE/UL / CCC approved international advanced high-tech product.
Main parameter:
Model: BM-A4
Productivity: Depend on bottle design-3500-3800 Pcs/Hour
Product type: Body diameter≤ 100mm, Height: ≤ 310mm, Neck diameter: 18-38mm
Mold: Cavity-4 cavity, Mold thick-240mm, Mold-260*240*370mm
Main machine power: Electrical source power-380V/220V 50/60Hz, Rated Power-49KW, Really use power: 10-15KW
Air source: LP air compressor-1.6m3 /min 10Kg, HP air compressor-2.0m3 /min 30Kg, Air dryer-2.0m3 /min 30Kg
Cooling water: Cooling water-15L/Min
Size: L*W*H-1910*1858*1935mm, Weight-3600Kg
Auxiliary equipment( pre-form unscrambler): L*W*H2000*950*2480mm, Weight-250Kg
Resin available: PET
