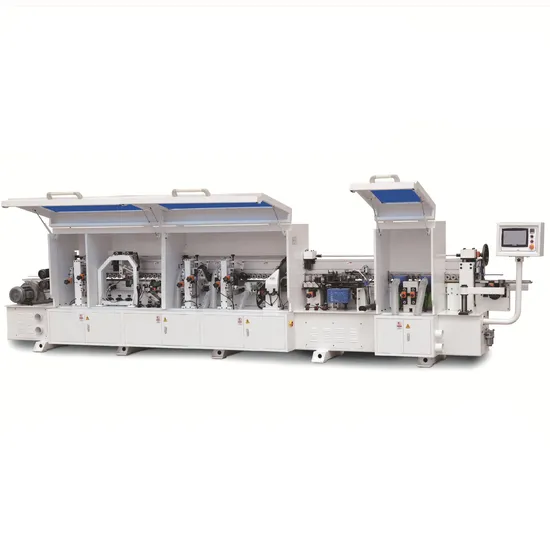

Hina Automatic Wood Furniture Making Polish CNC Machine for Edge Banding

Product Description

Application:
The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.
Advantage:
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and
clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.

Adopt to the linear sealing of PVC, wood plank and veneer etc. Using imported quality engines and electric components. Serialized products, a wide range of selection by customers. High precision and efficiency.
Functions
Gluing - End Trimming - Rough Trimming - Fine Trimming - Corner Rounding - Scraping - Buffing
Gluing -- Glue mechanism adopts a special structure to gelatinize the plated and coat materials uniformly, which ensures a more solid conglutination. End trimming -- End trimming mechanism through a precise guide track movement, adopts automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly. Rough and Fine Trimming -- Rough/Fine trimming mechanism is used for repairing the excess edge materials, adopting automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly. Conner trimming -- Profiling unit is to make board end more smooth and aesthetic. Scraping -- Scraping unit works for a perfect finishing of the applied edge. Buffing -- Buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface

Technical Parameter of Automatic Edge Banding Machine

Mode	F-46A
Width of Seal Sideband	0.4-3mm
Height 0f Seal Sideband	13-60mm
Thickness Of Product	10-55mm
Transporting Speed	25m/min
Air Pressure	0.7Mpa
Glue Box Heater	0.75kw
Milling Edge Device Motor	0.75kw×2
Polishing Motor	0.25kw×2
Conveyor Motor	2.2kw
Rubber Roller Motor	2.2.5kw
Pneumatic parts	Airtac cylinder, Bailing pressure reducing valve
Rubber wheel chain block	Guangdong Haisen
Electrical components	Chint Electric, Taiwan Delta PLC
Bed frame	Aggravated bed (tempering treatment)
Running environment temperature	0-45 centigrade
Voltage	380V, 50Hz
Quality Control	1.Strict control machine assembly each link,ensure machine clean and beautiful. 2.48 hours continuous work before shipping, ensure high quality.
After sales service	1.Technical support by email, calling or skype 2.English manual ,video for machine using and maintaining. 3.Our machines obtain CE and ISO9001 certificate.

About Payment
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the
machine photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.
