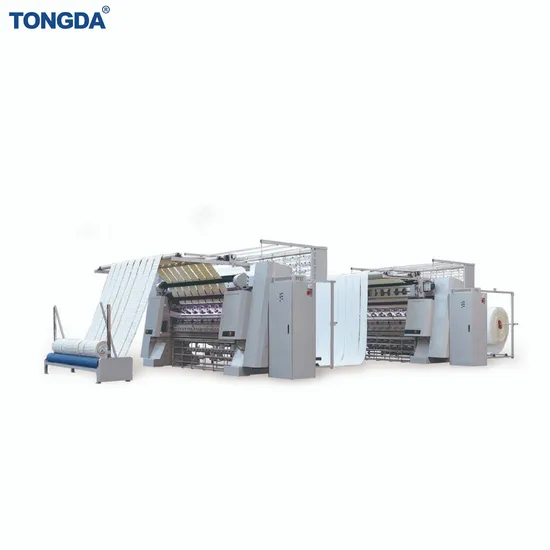

Computerized Chain Stich Multi Needle Quilting Machine

Product Description

Quilting Machine
It is widely used for quilting high-quality mattresses, quilt covers and
household ornaments. Different patterns are available.
TD-W-DGN
Computerized Chain Stitch Multi-needle Quilting Machine

Diversified functions
Based on the Multi-needle Quilting Machines and with all the functions of Multi-needle Quilting Machine, at the same time also with the functions of single needle quilting. With much more output comparing with Single Needle Quilting Machines and with more patterns comparing with Multi-needle Quilting Machines.
Adopting Chain stitch quilting mechanism
Avoid frequent bottom thread replacement and make quilting stitches firmer. The needle bar and press plate are controlled by a double-swinging camless device, preventing material lubrication and dirt. It has automatic stop for thread breakage, automatic needle lifting, and CNC speed adjustment.
Many Varieties
New generation of CNC system, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting. Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses.
TD-W-SJS-3
Computerized Chain Stitch Multi-needle Quilting Machine
New type retainer frame structure
Servo system is used in X-Y-Z axis, that can improve 30% production for independent patterns. Newly reinforced structure makes it work more stably. Raising supporting board makes it more convenient to opperate and maintain. Y axis reduction gearbox makes it work more fluently with low-noise.
Fast speed and high output
Optimized the mechanical structure make the higher speed and more production. Press plate lifting can be adjusted by one-button according to different material thickness. More tight thread stitches make the quilting pattern with stronger third dimension.
Various quilting patterns
Needle bar and press plate are controlled by a doubles-winging device without cam avoiding lubrication and dirtying of material. Multi-span and independent patterns (360°, 180° patterns).Automatic stop motion control in case the top thread or thhe bottom thread breaks, automatic needle-lifting and CNC speed adjustment.
TD-W-SJS
Computerized Chain Stitch Multi-needle Quilting Machine

High output
New type retainer frame structure, with the advantages of low noise. Optimized the mechanical structure make the higher speed and more production. Press plate lifting can be adjusted by one-button according to different material thickness.
Fast operation speed
Automatic stop motion control in case the top thread or the bottom thread breaks, automatic needle-lifting and CNC speed adjustment. Outstanding features such as high rigidity,high running speed, low vibration and noise.
Multi-span independent pattern
Adopting the new structure of press plate's adjusting makes thhe machine much simple. Multi-span independent pattern (360°and 180° patterns are available). Advanced and practical up thread-break detection unit.
TD-W-SJ
Computerized Chain Stitch Multi-needle Quilting Machine
Easy to operate
No need to adjust the press plate's position when the the thickness of quilting material varies. Outstanding features such as high rigidity, high running speed, low vibration and noise.
Graphically accurate
New generation of CNC system, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.
Three-dimensional pattern
Optimized mechanical structure makes higher speed and more production. More tight thread stitches makes the quilting patterns with stronger three dimensional effect. Strong functions of pattern-combining and multi-span quilting too enable you to quilt different patterns in each row in the mattresses of different sizes.
TD-W-BSJ
Computerized Chain Stitch Multi-needle Quilting Machine

Precise needle distance
Needle space is 0.5 inch, thus it can produce lines with spaceof 0.5 inch and with more pattern combinations.
Slitting devices
With slitting devices, which enable the edge taping materials nnore accurately and effectively.
Flexible production mode
The user can use one quilting machine TD-W-BSJ to produce edge taping materials, it also can combine TD-W-BSJ and TD-W-SJ working together, which has higher production efficiency.
TD-W-JH
Computerized Chain Stitch Multi-needle Quilting Machine
High rigidity body
Outstanding features such as high rigidity, high running speed, low vibration and noise. No need to adjust the press plate's position when the the thickness of quilting material varies.
Automation Equipment
Multi-span and independent patterns (360°and 180° patterns are available). Automatic stop motion control in case the top thread or the bottom thread breaks, automatic needle-lifting and CNC speeed adjustment. CE Certificate.
CAD drawings
Easy preparation of CAD drawings extremely precise. Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
Usage scenarios
Main technical parameters

Size (LWH):	4800×1500×2100 mm
Quilting width:	2550 mm
Space between needle rows:	50.8, 76.2, 127 ( 5")
Space between needle rows:	76.2, 76.2, 152.4(6")
Space between needles:	25.4 mm
X-axis movement displacement:	350 mm
Thickness of quilting:	<80 mm (for all patterns)
Stitch length:	3~8 mm
Speed of operation:	60~300 m/ hour
Model of needle:	24/180,23/160,22/140,21/130
Quilting speed:	600~1200 RPM
Total power required :	8.5 KW
Voltage:	380V/50HZ,220V/60HZ
Gross weight:	5600 KG
