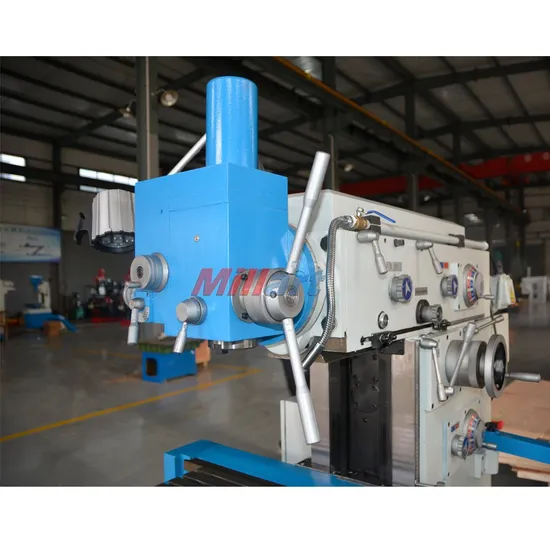

X8132 Universal Tool Milling Machine, Milling Machine

Product Description

Product Description
Feature:
Featuring High Flexibility , High Accuracy and High Eficiency , the universal tool milling machine has a wide variety of applications, ie drilling, milling & boring on tools, jigs, moulds and other complex jobs in instrument, workshops as well as training.
Specification:

	XL8132
Horizontal table size (L x W)	750 x 320 mm
T-slots (pc*size*center distance)	5*14*63 mm
Vertical table size (L x W)	890 x 225 mm
T-slots (pc*size*center distance)	3*14*63 mm
Max. table load	160 kg
X/Y/Z axes travel	405/305/400 mm
Spindle taper (H. & V.)	NT 40
Spindle speeds (H. & V., variable)	40 - 2000 rpm
Stroke of vertical pindle quill	60 mm
Feed rate (X/Y/Z axes)	10 - 1000 mm/min
Rapid traverse (X/Y/Z axes)	1200 mm/min
Main motor power	3.7 kW
Feed motor torque (X/Y/Z axes)	7.7/7.7/10 Nm
Machine weight	1450 kg
Machine dimensions (L x W x H)	1500 x 1700 x 1800 mm

Standard accessories:
Horizontal milling arbor & support
Reducing sleeve
Draw bar
Coolant system & chip tray
Automatic lubrication system
Work light
Optional accessories:
Collect chuck & collets
Digital readout (DRO)
Universal boring head
Dividing head
Drilling chuck
Universal table
