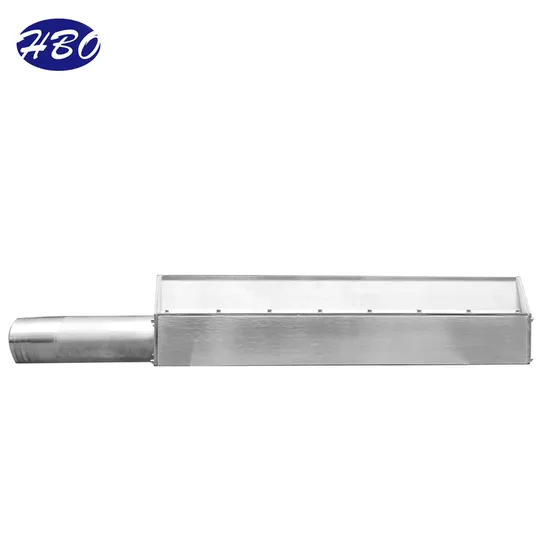

Industrial Heating Drying Nozzle 304 Stainless Steel Dryer Hot Air Blowing Knife for Water Removal

Product Description

Industrial Heating Drying Nozzle 304 Stainless Steel Dryer Hot Air Blowing Knife for Water Removal
Stainless Steel Air Knife Feature:
• Outlet:0.3-5mm; Air Knife length:0.2-3m• Widely used in circuit boards, plating parts, film drying.• All stainless steel SUS304 or 316L material, acid and alkalresist.• According to the aerodynamic principle design, wind resistance wind speed is average.• Pressure can be 5kgf/cm2, wind speed up to 200m/s, can blow hot air, temperature can be 200°C.• Can be used for drying water, isolated curtain, water curtain etc. to reduce the cold / hot air loss.• Inlet diameter: 32mm / 40mm / 50mm / 63mm / 76mm.

HBO Industrial Hot Air Blower Technical Parameters Table
Style	Model Name	Power Supply System V	Heating Power KW	Fan Power KW/H	Maximum Air Volume M³/Min	Maximum Wind Pressure PA	Maximum Temperature ºC	Air Outlet Φmm
Portable	HBO-HN-1220-BX-3-0.15-...	220	3	0.15	5	1100	350	The number of air outlet and diameter can be customized
	HBO-HN-3380-BX-5-0.3-...	380	5	0.3	9	1500	350
	HBO-HN-3380-BX-6-0.3-...	380	6	0.3	9	1500	350
High Pressure	HBO-HN-3380-GF-6~10-1.1-...	380	6~10	1.1	3.5	150M	350
	HBO-HN-3380-GF-10~15-2.2-...	380	10~15	2.2	5.3	190M	350
	HBO-HN-3380-GF-15~20-4-...	380	15~20	4	8.8	200M	350
	HBO-HN-3380-GF-20~25-7.5-...	380	20~25	7.5	11.6	260M	350
Standard	HBO-HN-3380-BF-6-0.55-...	380	6	0.55	14	1020	350
	HBO-HN-3380-BF-10-0.75-...	380	10	0.75	20	1210	350
	HBO-HN-3380-BF-15-0.75-...	380	15	0.75	20	1210	350
	HBO-HN-3380-BF-20-1.1-...	380	20	1.1	45	1380	350
	HBO-HN-3380-BF-30-2.2-...	380	30	2.2	66	1470	350
	HBO-HN-3380-BF-40-2.2-...	380	40	2.2	66	1470	350
	HBO-HN-3380-BF-50-3-...	380	50	3	76	2050	350
Casting	HBO-HN-3380-ZX-20-2.2-...	380	20	2.2	26	2500	350
	HBO-HN-3380-ZX-30-3-...	380	30	3	27	2650	350
	HBO-HN-3380-ZX-40-3-...	380	40	3	27	2650	350
	HBO-HN-3380-ZX-50-4-...	380	50	4	34	4600	350
	HBO-HN-3380-ZX-60-4-...	380	60	4	34	4600	350
	HBO-HN-3380-ZX-80-7.5-...	380	80	7.5	47	5600	350
	HBO-HN-3380-ZX-100-11-...	380	100	11	60	7180	350
Models above 100KW can be customized

Application Industry and Usage
1. All kinds of metal, non-metal plate, casting, wire production industry for oven-drying or rapid blow-drying.
2. Automotive industry, coating and printing industry: warming, heating, drying, curing of coatings, rapid blow-drying.
3. Chemical and mining industry: heat preservation, drying or rapid temperature rise.
4. Food and pharmaceutical production: desiccation, baking, sterilization, rapid blow-drying, shrink packaging.
5. Agricultural and animal husbandry industry: channel-type swine fever efficient extermination system, oxygen heating constant temperature heat preservation system, rapid drying system.
6. Electronics manufacturing industry: heating packaging, heating aging, high-temperature welding, oven-drying or rapid blow-drying.
