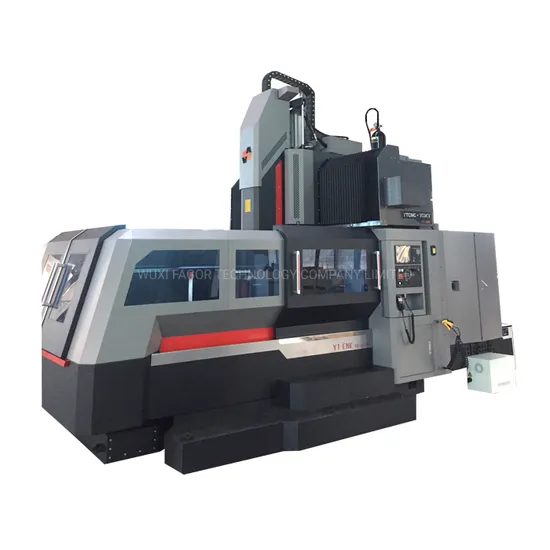

High-Precision Gantry Machining Center Heavy-Duty Cutting 3 Axis CNC Gantry Machining Center
| US$90,000.00-130,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TB-LP2016
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE
Condition
New
Max. X Axis Travel(mm)
2000
Max. Y Axis Travel(mm)
1650 (Tool Change 1850)
Max. Z Axis Travel(mm)
800
Gantry Width(mm)
1660
Gantry Height(mm)
1100
Range of Spindle Nose to Worktable(mm)
250~1050
X/Y/Z Axis Motor Connect Way
Direct
Recommned Spindle Motor Power(Kw)
22kw
Recommend X/Y/Z Axis Motor(Nm)
36, 36 (Brake)
Max. Loading of Worktable(Kg)
4000
Frame Weight(Kg)
16000
Transport Package
Wooden Packing
Specification
7790× 3630× 3830
Trademark
Fagor
Origin
China
Production Capacity
100
Product Description
| ITEM | TB-LP2016 | TB-QLP3016(LIGHT) | |
| WORKTABLE SIZE(L×W)(MM) | 1300×2000 | 1300×3000 | |
| MAX. X AXIS TRAVEL(MM) | 2000 | 3000 | |
| MAX. Y AXIS TRAVEL(MM) | 1650 (TOOL CHANGE 1850) | 1650 (TOOL CHANGE 1850) | |
| MAX. Z AXIS TRAVEL(MM) | 800 | 800 | |
| GANTRY WIDTH(MM) | 1660 | 1660 | |
| GANTRY HEIGHT(MM) | 1100 | 1100 | |
| RANGE OF SPINDLE NOSE TO WORKTABLE(MM) | 250~1050 | 250~1050 | |
| WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 7-22×170 | 7-22×170 | |
| SPINDLE(MODEL /DIAMETER) | BT50/∅190 | BT50/∅190 | |
| SPINDLE DRIVEN | BELT | ROTATE SPEED 6000R/MIN | ROTATE SPEED 6000R/MIN |
| DRIVE RATIO 1.5∶1 (1∶1 OPTION) | DRIVE RATIO 1.5∶1 (1∶1 OPTION) | ||
| Z F REDUCER+BELT,OPTION | 6000R/MIN | 6000R/MIN | |
| 4∶1 | 4∶1 | ||
| X.Y.Z Axis Rapid Speed (mm/min)) | 12000/15000/12000 | 12000/15000/12000 | |
| X.Y.Z Axis Speed (mm/min) | 1-10000/1-10000/1-8000 | 1-10000/1-10000/1-8000 | |
| X/Y/Z AXIS BALL SCREW | X:6310,Y:5010,Z:5010 | X:6312(8020 is optional),Y:5010,Z:5010 | |
| X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER | X:ROLLER GUIDE 55/6 Y:ROLLER GUIDE 55/4 Z:RECTANGULAR ROLLER | X:ROLLER GUIDE 55/10 Y:ROLLER GUIDE 55/4 Z:RECTANGULAR ROLLER | |
| X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | X AXIS PLANETARY GEAR 4∶1 Y/Z AXIS DIRECT | |
| RECOMMNED SPINDLE MOTOR POWER(KW) | 22KW | 22KW | |
| RECOMMEND X/Y/Z AXIS MOTOR(NM) | 36,36,36 (BRAKE) | 38,30,30 (BRAKE) | |
| FRAME DIMENSION(MM) | 5590×3630×3830 | 7790×3630×3830 | |
| MAX. LOADING OF WORKTABLE(KG) | 4000 | 6000 | |
| FRAME WEIGHT(KG) | 16000 | 20000 | |
