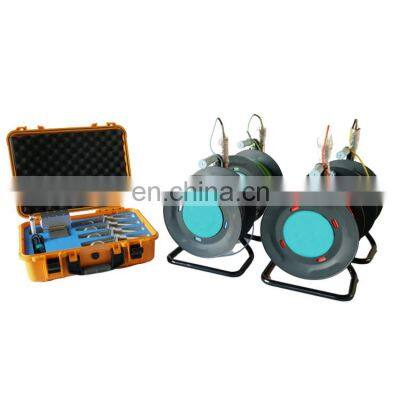

Non-Metallic Ultrasonic Detector (Four Pile) Manufacturer

Product Description

Product Description
Product DescriptionU950/U960Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method for pile integrity testing, Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.Product ModelU950U960Master unitBuilt-in A8 industrial control motherboardBuilt-in A8 industrial control motherboardDisplay10.1 inch, high brightness, TFT color LCD capacitive screen10.1 inch, high brightness, TFT color LCD capacitive screenOperational modeTouch screenTouch screenStorge mode Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U DiskBuilt-in Electrionic Hard Disk(＞8GB)+ Large Capacity U DiskAcquisition modeSynchronized continuous rapid miningSynchronized continuous rapid miningNumber of channels3 Channels Spontaneous Receiving4 Channels Spontaneous ReceivingannelsOne-time section number36Trigger modeSignal triggeringSignal triggeringTest methodPlainning Re-testing Encryption. Oblique SurveyPlainning Re-testing Encryption. Oblique SurveyData transmission modeWireless Cloud Transport(Options)Wireless Cloud Transport(Options)Acoustic Time Accuracy(μs)0.050.05Sampling period(mμs)0.05-409.6 Multistage Options0.05-409.6 Multistage OptionsAcoustic time range(mμs)±1677700±1677700Dynamic range(dB)146146Width measurement functionMeasuring range: 0~10mm; Measuring accuracy: 0.01mmBandwidth(kHZ)1~5001~500Receiving Sensitivity(UV)Less than 10Less than 10Gain Accuracy(dB)0.50.5Emission Voltage(V)65, 250, 500 and 1000 gear adjustable65, 250, 500 and 1000 gear adjustableCommunication interfaceUSB, Bluetooth, WifiUSB, Bluetooth, WifiWorking hoursmore than 8more than 8Powder supply modeBuilt-in lithium battery External 220V~16V AC/DCBuilt-in lithium battery External 220V~16V AC/DCWorking environment-10~40℃ Humidty (RH) ＜90%-10~40℃ Humidty (RH) ＜90%Host size(mm)300x200x55300x200x551.Newly upgraded wireless cloud transmission function;2.With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;3.It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.4.Full touch screen operation, simple, convenient, stable and reliable;5.Multichannel automatic acquisition, automatic recording of high harmony time waveform;6.The deep recording wheel adopts dustproof and waterproof design;7.Large memory capacity, working time up to 10 hours or more;8.It can directly connect the digital rebound rifle probe to the ultrasonic rebound comprehensive method for measuring strength;9.U disk dump data, support software upgrade through U disk;10.The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.11.The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.Company ProfileCangzhou Lovely Technology Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment. It also has warehouse, be assured for sufficient supply. We are continuing to design and produce new production to satisfy customers’ request. Welcome to visit us for business negotiation!Production and WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material. Besides, we could also purchase products as request.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3: What's the MOQ of the product?A: Different items have different MOQ. Welcome to contact our sales for getting more details.Q4: What certificates do you have?A: We have ISO 9001, CE, SGS.Q5: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
