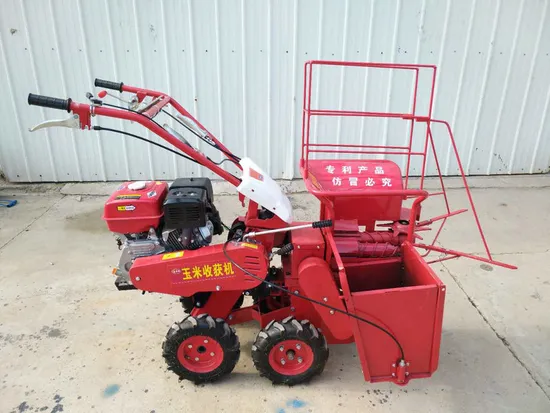

Combine Harvester Suitable for Corn Maize

Product Description

Combine Harvester Suitable for Corn Maize
Introduction
This machine completes a row of corn picking and straw crushing. Supporting a set of spike can be removed under the filling bag, stubble height adjustable, tension clutch work safety, small turning radius of small operation. The aircraft per hour of corn corn smelting a month of direct smashing, peeling skin is not clean, ear height of 60 cm above can be harvested, the higher the straw the greater the rate of light bar.
Characters
1: small size, adaptability, widely used in hills and mountains and other large corn harvesters can not pass the sporadic block
2: full-featured, picking crushed straw crushed into the field, etc., and almost the same function
and large corn harvester.
3: matching power, machine delivery.
4: easy to install and disassemble, really a car more use.
5: flexible operation, cutting crop height can be adjusted, turning radius is small.
Specification

Model	ACG-177	ACG-182
Power type	9hp gasoline engine two stroke 177 model	13hp gasoline engine two stroke 182 model
Width of cut	70cm	70cm
Total loss rate	1%	1%
Fuel tank capacity	9L	9L
Work efficiency	0.1ha./h	0.1ha./h
Start mode	Electric start	Electric start
Machine weight	120 kg	120KG
Row number	1	1
Dimension	1350*950*1200mm	1350*950*1200mm
