Fine Bubble Aeration Membrane Tube Air Diffuser for Aquaculture Fish Farming

Product Description

Product Description
Product Description

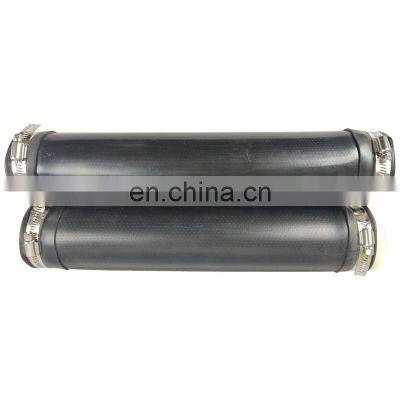

The Tubular Fine Bubble Diffuse is a kind of aeration equipment fixed at the bottom of the tank. It has the advantages of simple structure, high oxygen utilization rate, reliable performance, air hole is not easy to block, no backflow of sewage, uniform circumferential stress, long service life, convenient installation and maintenance, low price and so on.

Name	Tubular Fine Bubble Diffuse
Diameter	φ63, φ65, φ90 or Customization
Length	500mm, 750mm, 1000mm or Customization
Membrane Material	EPDM or Silicone Rubber
Service Life	3-5 years
Air Bubble Diameter	1-3mm

EPDM Bubble Diffuser Aeration Hose Air aerator fine tube bubble diffuser
Membrance fine bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
EPDM fine bubble membrane diffusers are constructed with premium quality EPDM membranes engineered for superior product
life,operational flexibility and maximum oxygen transfer efficiency. The units are ideally suited for continuous or on/off applications and require minimal maintenance for long-term performance

Model	65mm*500mm	65mm*750mm	65mm*1000mm
Membrane material	EPDM/Silicone
Lining Pipe Material	ABS
Oxygen transform efficiency(%)	>30
Working air flow(m3/h)	1-5	1-7	1-12
Designed air flow(m3/h)	3	5	7
Service area(m2/piece)	0.45-1	0.5-1.2	0.75-1.5
Hole number(pc)	8080	12300	16880
Bubble dia(mm)	1-3	1-3	1-3
Drag loss(pa)	<3000
Oxygenate capability(kgO2/h)	0.45	0.55	0.65
Theoraetic dynamic efficiency(kgO2/kw.h)	6.5	7	7.5

Good Aeration Effect
During aeration, the pressurized air enters the air channel, form an annular air chamber between the membrane and the ABS support tube, The membrane tube is inflated, and the air can be aerated to the water through micro holes in the membrane tube. When the air supply is stopped, the membrane tube is elastic contracted and tightly held on the support body, the micro holes are closed with the rebound contraction, prevent backflow of water into the air channel.
Advantages and Feature
The composite membrane has a long life and can reach 5-8 years, which completely solves the shortcoming of rubber membrane's easy tearing and short life.Strong collision resistance, not easy to damage.
Airholes are not easily blocked, sewage does not flow backwards.
All made of anti-corrosive material
Types of fine bubble tube diffuser.
The application of fine bubble air diffuser
The packing detail of fine bubble tube diffuser
