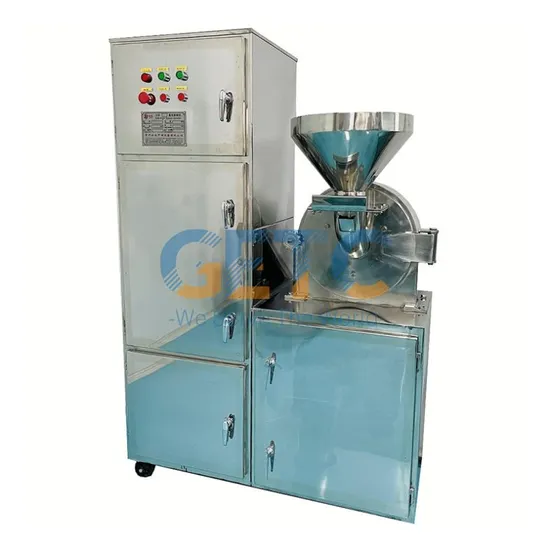

Universal Crushing Mill Pulverizer Grinder Crusher for Super-Fine Milling

Product Description

Product Description This multi-functional universal pulverizer utilizes the relative movement between the moving-gear and fixture gear. The materials are pounded by dish, rubbing and materials are each other pounded. Thereby the materials are crushed. The materials that are already smashed through the function of revolve eccentricity power, enter into gathering bag automatically. The powders are filtered through dust arrester-box. The machine adopts GMP standard design, using the stainless steel materials all, having no powder to float in the production line. Now it already reaches international advanced level.
Features This machinery adopts wind-wheel type, high-speed revolving cutters to mill and shear the materials. This processing achieves excellent crushing effect and crushing energy and finished products are blown out from screen mesh. The fineness of the screen mesh is changeable by various screens.
Applications This machinery is mainly applicable for weak-electric substances and high temperature-resistant substances such as chemical industry, medicine (Chinese medicine and medicine herbs), foodstuff, spice, resin powder, etc.
Product Parameters

Type	DCW-20B	DCW-30B	DCW-40B
Production capacity (kg/h)	60-150	100-300	160-800
Main shaft speed (r/min)	5600	4500	3800
Size of input (mm)	≤6	≤10	≤12
Crushing size (mesh)	60-150	60-120	60-120
Crushing motor (kw)	4	5.5	7.5
Motor of absorbing dust (kw)	1.1	1.5	1.5
Overall dimensions L×W×H (mm)	1100×600×1650	1200×650×1650	1350×700×1700

Related Products
Pin Mill Disc Mill Hammer Mill
Company Profile Changzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.
The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .
We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.
We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.
Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.
Certifications
Packaging & Shipping
