Magnetic Contacts Switches Door Contacts
| US$0.70-1.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
BS-2011
Certification
CE, ISO, RoHS, UL
Maximum Switching Voltage
100
Maximum Switching Current
0.5
Color
White, Brown, Grey
Reed Form
N/O,N/C,Spdt
Loop Type
Closed/Open/Closed&Open
Closed Gap[Inch(mm)]
1 (25)
Transport Package
Box
Specification
Plastic
Trademark
Sentek
Origin
Ningbo China
HS Code
8531901000
Production Capacity
200000/Month
Product Description
Specification:

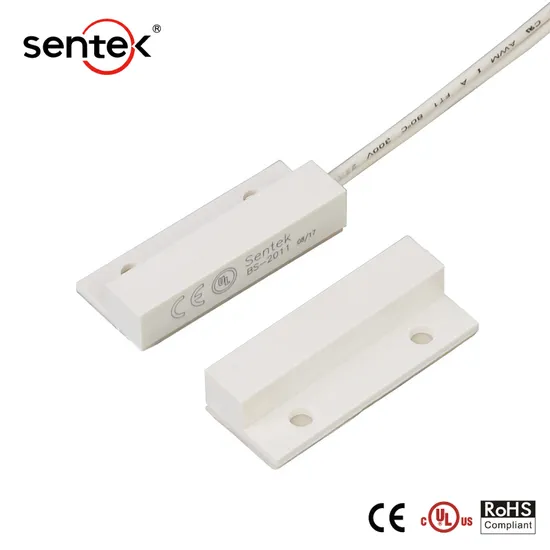

Surface Mounted Magnetic Contacts Switches Door Contacts
Product Features:
* Mini Stick-on contact with flange
* Side leads with #22AWG 18" length
* Adhesive and screw mount included
* Special leads on request
* Switches or magnets available seperately
* Resistor, Diode and Supervisory Loop available on request
* Colors: White, Brown, Grey
* Without Flange (BS-2051)
Order Information:
| Part Number | Loop Type | Reed Form | Closed Gap [Inch(mm)] | Maximum Initial Contact Resistance(Ohm) | Maximum Contact Rating(W) | Maximum Switching Voltage(VDC/VAC) | Maximum Switching Current(A) |
| BS-2011 | Closed | N/O | 1 (25) | 0.150 | 10 | 100 | 0.5 |
| BS-2011MN2550 | Closed | N/O | 1 (25) | 0.150 | 10 | 100 | 0.5 |
| BS-2011WG | Closed | N/O | 11/4 (31) | 0.150 | 10 | 100 | 0.5 |
| BS-2011A | Open | N/C | 1(24) | 0.150 | 3 | 30 | 0.2 |
| BS-2011C | Closed & Open | SPDT | 1 (24) | 0.150 | 3 | 30 | 0.2 |
