Basic Info.
After-sales Service
Oversea
Max. Speed of Tape Walking
20 M/Min
Oven Measurement
2000*1380*2000 mm
Oven Operation Temperature
50 - 100 Degree
Figure Measurement
2000*450*900 mm
Silicone
One / Two Components Liquid Silicone for Coating
Pump
One / Two Part Coating Silicone Pump
Transport Package
Seawood Packing
Specification
2000*1480*2000 mm
Production Capacity
1000 Set/Year
Product Description
Ealstic band tape ribbon webbing narrow fabric silicone coating machine
Ealstic band tape ribbon webbing narrow fabric silicone coating machine is for coating silicone onto elastic tape , woven tape , webbing , ribbon , lanyard etc.
It can do line type coating , wave type coating , reticulation type coating etc.

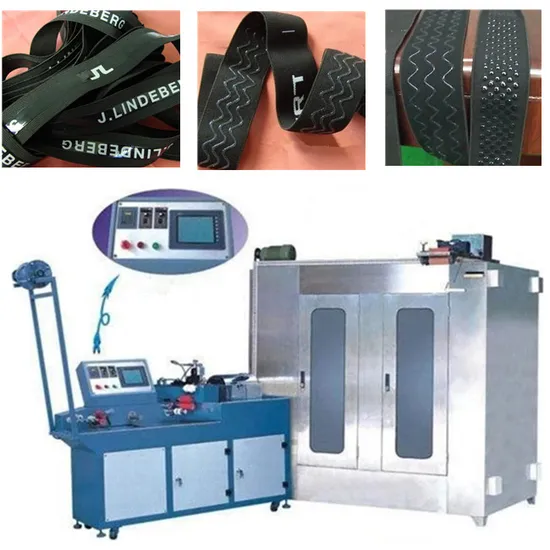

Ealstic band tape ribbon webbing narrow fabric silicone coating machine Picture :
Ealstic band tape ribbon webbing narrow fabric silicone coating machine Parameter :
| Model | DH-CM01 |
| Type | One tape /two tape coating |
| Raw material | One/two components liquid silicone |
| Max. tape width | 60 MM |
| Max. speed of tape-walking | 20 M /MIN |
| Air Pressure | 6 kg/cm2 |
| Voltage | 220V /380 V |
| Power | 8 KW |
| Figure Size | 2000*480*900 MM |
| Oven opration temperature | 50 - 100 °C |
| Oven Size | 2000*1380*2000 MM |
| Weight Of Machine | 800 KG |
| Pump | One/two part silicone coating pump |
Below samples made by Ealstic band tape ribbon webbing narrow fabric silicone coating machine :
