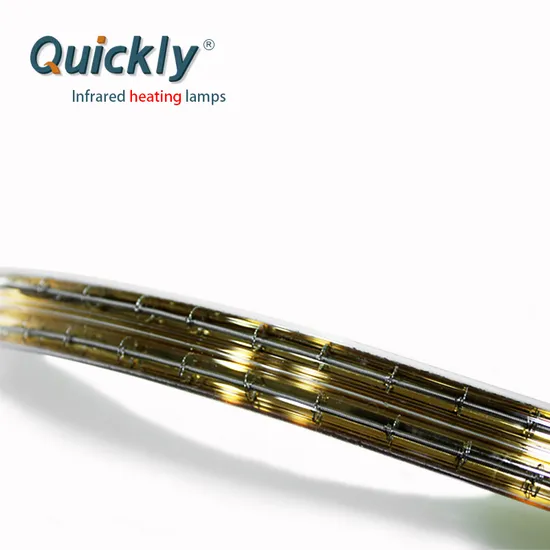

Quartz Double Tube Infrared Heating Lamp for Printing Machine

Product Description

quartz double tube infrared heating lamp for printing machine
Why infrared heat lamp?
Quartz glass infrared emitter frequently prove superior to conventional heating sources such as warm air,steam,ceramic,gas or metal emitters,because they transfer large amounts of energy very quickly and can be precisely matched to the product and the manufacturing step -the ideal heating process.
-Infrared radiation requires neither contact nor intermediate transfer medium
-Quartz glass infrared emitters are precisely matched to the materials to be heated
-Fast response times allow controllable heat
-Heat is applied precisely where and only for so long as it is required
Compared for example to warm air heating ,this often means less energy consumption,higher line speed,a smaller foot print and better result
1.Product Description

Production Name	quartz glass halogen heraeus ir curing lamp Flash Dryers
Tube Diameter	18*9mm	23*11mm	33*15mm
Overall Length	80-1500mm	80-3500mm	80-6000mm
Heated Length	30-1450mm	30-3450mm	30-5950mm
Tube Thickness	1.2mm	1.5mm	2.2mm
Max Power	150w/cm	180w/cm	200w/cm
Connection Type	lead wire at one or two sides
Tube Coating	transparent, gold coating, white coating
Voltage	80-750v
Cable Type	1.silicone rubber cable 2.teflon lead wire 3.naked nickel wire
Installing Position	Horizontal / vertical
All you wanted can be found here - customized service

Technical Specificatiosn Of Twin Tube IR Lamp

Ref No.	Voltage	Wattage	Twin tube	Total length
	v	w	mm	mm
1	220	1700	15*33	1280
2	230	500	11*23	400
3	230	1000	11*23	600
4	230	2000	15*33	900
5	230	2500	15*33	1100
6	230	2500	15*33	1300
7	230	3250	15*33	1420
8	230	3750	15*33	1600
9	380	4800	15*33	2135
10	400	4100	15*33	1800
11	400	4500	15*33	1920
12	400	5250	15*33	2200
13	400	5750	15*33	2400
14	400	6250	15*33	2600
15	415	1250	15*33	1100

2. Production Process

3. Applications
Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.
4.Company Information
Hefei Quickly 80% workers have a long working years - more than 10 years, they are skillful with lamp production,in this case, we can shorten our production period largely, for instance, we can finish 1000pcs IR lamps with 3 working days,all of the product are customized. 5.RFQ
1)how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2)Why Quartz Glass as the one main of material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
working temperatures of more than 1000°C and it is resistant to chemical corrosion.
3)Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing
the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power
into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
4)could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
5)Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
6)How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained
CE, ROHS, ISO9001.
7)How do you do lamps package?
8)How To make the shipping?
DHL,UPS,TNT,FedEX,S.F express,air or sea are all avaliable
