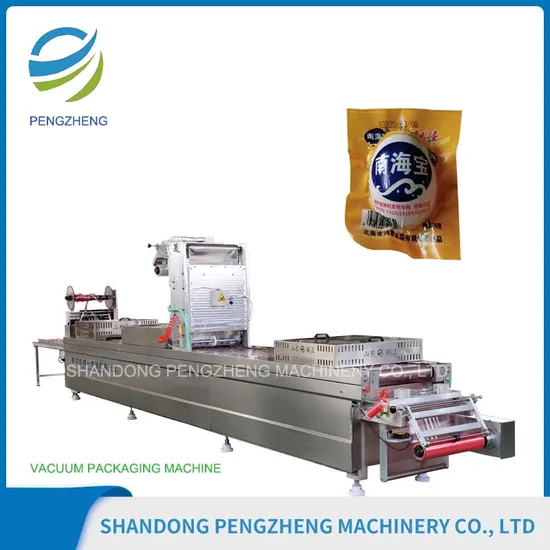

Automatic Two-Side Stretch Film Vacuum Packing Machine for Eggs and Other Food

Product Description

Automatic Double-Side Stretch Film Vacuum Packing Machine 520 for EggsProduct Description
WHY CHOOSE PENGZHENG
BECAUSE PENGZHENG MAKES DIFFERENCE
1. CUSTOMIZATION: PROFESSIONAL CUSTOMIZATION
2. EFFICIENTY: 6-8 CYCLES / MINUTE
3. DESIGN PATENTS: OVER 10 PATENTS
4. TECHNIQUE: ADVANCED
5. QUALITY: VERY STABLE IN THE PRODUCTION
6. SECURITY: OPERATION SAFTY

The automatic double-side stretch film vacuum packaging machine for eggs is designed to meet the packaging needs of various industries. This innovative machine make film double-side stretching and double-side forming.
At first, a bottom film is heated and then stretched according to shape of a mould in forming area.
Second, the materials(eggs) to be packed are put into the formed bottom film.
Third, a top film is heated and then stretched according to shape of a mould in another forming area.
Forth, the formed top film covers the formed bottom film and then they are vacuum formed perfectly in vacuum chamber.
At last, the materials(eggs) are transported and cut into independent packaging bags.
COMPONENTS
1. MAIN STRUCTURE: STAINLESS STEEL 304, THICKNESS 6MM.
2. BOTTOM FILM DEVICE
3. ELECTRONIC MAGNETIC PRELOAD DEVICE
4. FORMING DEVICE: FILM HEATED AND FORMED HERE
5. LOADING AREA
6. VACUUM / SEALING DEVICE: DOUBLE-SIDE FILM VACUUM FORMED HERE
7. TOP FILM DEVICE
8. TOUCH SCREEN DEVICE
9. CUTTING DEVICE: DEVIDE MATERIALS INTO INDEPENDENT PACKAGING BAGS
10. WASTE FILM COLLECTION DEVICE: COLLECT WASTE FILM
PROFESSIONAL VACUUM PACKAGING MACHINE
food, medicine, hardwares, etc.
Detailed Photos
Double-side stretching double-side forming ensuring top film and bottom film precise positioning;
Font pattern after stretch forming remain same as that before stretch forming enhancing aesthetics of the package;
Additionally, it reduces air leakage of the film ensuring optimal package.

Details	Traditional packing bag	Single side strech film packing	Double-side stretch film packing
Quantity of Stretch Film	Without	Single Side	Double-side
Forming Depth of Film in Packing Same materials	Without	Max. 120mm	Max. 120mm. Forming Depth of double-side stretch film is smaller than that of single strech film. The double-side stretch film is thicker and more uniform than the single-side stretch film after forming. It can prevent oxygen from entering the film and it can prevent eggs from damaging during transport.
Efficiency	Low	High	Middle
Cost	High	Low	Middle
Appearance	Beautiful. Double sides of bags are with beautiful printing.	More Beautiful. Single side of films are with beautiful printing; Single side of films are stretched and formed uniformly according to shapes of eggs.	Most beautiful. Our double-side stretch film automatic vacuum packing machine does an imitation of traditional packing bags. Double sides of films are with beautiful printing; Double sides of films are stretched and formed uniformly according to shapes of eggs.
Pictures

Besides, our machine has a special function which we call "No film no working". The machine automatically shuts down when films run out, which can reduce loss.
AUTOMATIC CORRECTION DEVICE
To improve efficiency, our vacuum packaging machine is in big-size customization. The size of the machine larger the film heavier. Therefore, the film may have a problem in deviation and falling off. We have incorporated an automatic correction device for the top film and the bottom film, ensuring smooth operation.
Fully automatic intelligent calibration includes:
1. Automatic left-right correction
2. Cursor conditioning of top film and bottom film
Easy cleaning of waste egg white: The egg white drainage and filtering module can stop liquid from entering vacuum pump and make collection of egg white easy, simplifying the cleaning process.
One egg breaking will not pollute other eggs. Our machine includes a pre-sealing device that seperate them from each other, effectively solving the pollution problem associated with egg packaging.
MOULD DIVERSIFICATION
The equipment can be equipted with multiple sets of moulds, which is simple and convenient to replace. It is suitable for packing eggs from 40g to 100g. HIGH AUTOMATION

Hand Feeding	Our machine is able to do the whole process from package forming, vacuum-sealing, cutting to final output automatically. And it can be fully controlled by PLC touch screen.	Need 3-4 people to do the whole process
VS
Automatic Feeding	Our machine can be equipped with automatic feeding equipment.	Need 1-2 people to do the whole process

TOP SAFETY
Safety is our top concern in machine design. To ensure the security of workers and machines, many sensors are installed under the cover and other removable parts to make sure the machine can auto-stop while the covers are open.HUMANIZATION DESIGN
We have added an equipment control station with an equipment control button at the receiving part of the rear section, making operation more convenient and user-friendly. Besides, there are emergency stop buttons in front, middle and back of the equipment helping emergency handing.
Our automatic double-side stretch film vacuum packaging machine is an ideal choice for industry of packing eggs or materials in larger volume at present and in the future. It can offer efficient and hygienic packaging solutions, ensuring the preservation and quality of eggs and elegant package of eggs.
Product Parameters
Technical data for reference

Main Components
Vacuum Pump	RIETSCHLE(Germany)
Electrical Components	Scheneider(French)
Servo Motor	Scheneider(French)
Chain	TYC(Taiwan)
Machine Parameters
Model	PZ-520
Dimensions	7000mm×1200mm×1800mm
Materials of Main Structure	Stainless Steel 304
Weight	About 2200kg

Working Parameters
Width of Top Film	525mm
Width of Bottom Film	498mm
Available Film Width	484mm
Thermoforming Temperature	70-120 Degree Celsius / 158-248 Fahrenheit Degree
Thermoforming Voltage	0.15 MPa
Thermoforming Time	1 s - 5 s
Sealing Temperature	125-150 Degree Celsius / 257-302 Fahrenheit Degree
Sealing Voltage	0.15 MPa - 0.3 MPa
Sealing Time	1.5 s -2.5 s
Vacuum Degree	≤200 Pa
Packing Speed	6-8 cycles / min
Packing Capacity	8500-9000 pieces / h

The parameters in this sheet are for reference only. Some of the datas may be different with different cases.
Packaging & Shipping
Package Size: 700cm*120cm*180cm
Package Gross Weight: About 2200 kgs
Our Advantages
1) Perfect packagingThe machine's stretching film with vacuum technology ensures that the packaging is tightly sealed, preventing any air or moisture from entering. We offer information about packages and machinery before making a special offer.
2) Time-Saving
The vacuum-sealing process is quick and efficient, allowing for high production rates and increased productivity.
3) Durable Construction
Made with high-quality stainless steel 304, the machine is built to withstand the demands of continuous use, ensuring long-lasting performance.
4) Long shelf life
The aided shelf life can be extended by 2-3 times compared to the same product exposed in open atmosphere.
5) Cost-effective
Each package is sealed using only the necessary amount of film, resulting 40 percent less material than other traditional wrapping packaging
6) Easy operation
By finger touch on PLC screen,you can easily control the whole machine
7) Flexible design
The package shape, column, packaging speed can all be customized
8) Reliable quality
Spare parts of international top brands, and experienced workman
Welcome to choose Shandong Pengzheng Machinery Co., Ltd for reliable and high-quality packaging equipment. Contact us to know more about our vacuum packaging machine for eggs, please.
Installation Instructions
1. Professional Guidance
Upon the arrival of your goods at the destination port, our team will offer expert guidance on unloading and placing them in your workshop. We understand the importance of proper handling to maintain the integrity of the products.
2. Installation and Debugging
A. Our team of senior engineers will provide step-by-step guidance on how to install and debug your machinery through detailed instructional videos. This ensures a smooth setup process and minimizes any potential issues.
B. Customer Customization: Our team of senior engineers can go to your company to install and debug your machinery. After that, once there is any problem in processing the machine, our team of senior engineers will provide step-by-step guidance on how to solve the problem through detailed instructional videos.
After Sales Service
1. WARRANTY SERVICE
1) The whole machine has 12 months warranty. We have multiple after-sale services including online guiding, engineering service, installing & tuning service etc. and excluding wearable parts such as silicone plate, film, heating elements, knives etc.
2) Special overseas engineer service is not included in the warranty.
3) Other items or service can be negotiated.
2. MAINTENANCE SERVICE
1) We offer lifelong maintenance. In the event of a failure, customers can seek repair services by phone, mail or online support. The after-sales service team will respond in a timely manner and guide customers through simple troubleshooting.
2) Customer Customization: If it cannot be solved by itself, it is necessary to provide maintenance personnel to the scene for maintenance.
3. GENUINE SPARE PARTS SUPPLY SERVICE
1) We are building our spare parts supply center all over the world to make sure you can get spare parts from our oversea warehouse in time when you need them.
2) We are establishing cooperation with our partner all over the world to make sure they can supply you with spare parts when you need them.
4. TECHNICAL SUPPORT SERVICE
1) We provide a 24-hour technical support hotline. Customers can contact technicians at any time and get support and professional guidance to solve problems.
2) Online technical support and training courses can be provided so that customers can learn and understand how to use the equipment at any time.
5. CUSTOM CARE
1) Preventive maintenance
We have developed a preventive maintenance program, so that you can operate with our machine solutions as simply and conveniently as possible. This maintenance program, which is tailored to your particular requirements, means that you can be sure of the smooth operation and optimum ourput of your equipment over its entire life cycle.
2) Inspections
A significant part of inspection is the checking and documentation of the current condition of the components in your machines. Our expert is therefore able to identify any weak points at an early stage, as well as assess the potential for machine optimization. Targeted measures can then be taken in line with your particular needs and plans. This enables us to provide the optimum output and efficiency for your machines - at all times.
3) Extended warranty
The warranty can be extended to up to 48 months if combined with a preventive maintenance agreement.
4) Remote Assistance
Using live support assistance tool, our expert can help you in an even more wide-ranging and specific way. To use this tool, you only need your mobile device such as smartphone or tablet with Internet access.
5)Helpdesk
Our helpdesk is focused on providing fast and effective troubleshooting, as well as on giving advice to our customers on all technical questions.
6) Factory refurbished
Including Factory refurbishment of components and factory refurbishment of complete machines
6. MODERNISATION
Modernisation service allows you to adapt your existing machines to new tasks and market requirements. By integrating new modules or retrofitting additional functions, we can extend the service life of your machine and increase its efficiency.
FAQ
Q1: How long does it take to deliver the machine after the order & deposit?
A1: Usually it will take 45 working days to manufacture the machine and make it ready to deliver. At first, it will take 10 working days to make the technical drawing. Second, it will take 15 working days to manufacture the parts and make them ready to assemble. In the last 20 working days, the machine will be assembled and tuned to make sure it is ready to deliver.
Q2: What do you need to make a specific offer for my product?
A2: To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.
Q3: Can you offer oversea service?
A3: Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange an engineer to go to your factory personally to solve the issue.
