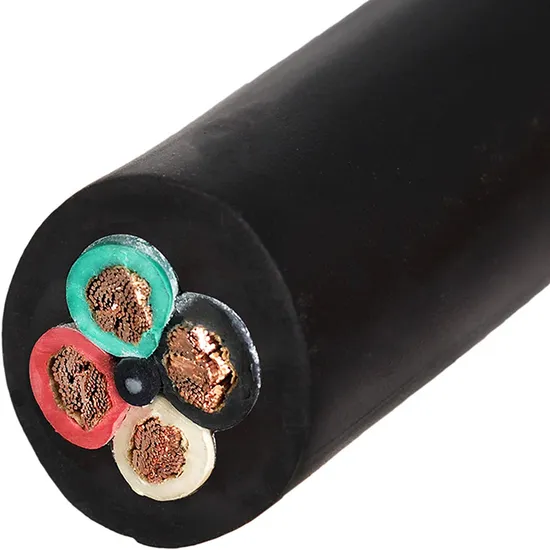

Flexible Rubber UL Wire Type So Sow Soow Sjoow EPDM Insulation Underwater Electrical Electric Cable

Product Description

Flexible rubber UL Wire Type So/Sow/Soow/Sjoow EPDM insulation Underwater Electrical electric Cable APPLICATION
TYPE SOOW Cable is for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications. Constructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use. SOOW flexible rubber cords carry a 600 volt rating. They are also manufactured as a 300 volt rated Junior Service cord designated as SJOOW. Using the key, a SJEOOW cord is a 300 volt (junior service) elastomer plastic oil resistant inner and outer jacket portable cord.
Applications Portable tools
Industrial and processing equipment
Construction equipment
Cranes and hoists
Track systems
Battery chargers
Portable appliances
Small motors and associated machinery
Electrical equipment exposed to oils, solvents, flame, or moisture STANDARDS & REFERENCES
Type SOOW Cords/Cable meets or exceeds the applicable requirements of the following standards and
specifications:
UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant
SOOW offers:
• Excellent resistance to oils, acids, chemicals, water, ozone, extreme
temperatures, cuts, tears and abrasion
• Sunlight resistant
• Flame retardant
• Indoor/outdoor rated
• Highly flexible
• Maximum continuous conductor temperature: 90°C DRY
CONSTRUCTION
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW

Conductor Size (AWG)	Conductor Stranding			Nominal Insulation Thickness	Nominal Jacket Thickness	Nominal Overall Diameter (in)	Weight	Ampacity
	n	/	AWG/inch	mil	mil	in	lbs/1000ft	A
2*18AWG	16	/	30	30	60	0.33	70	10
3*18AWG	16	/	30	30	60	0.35	80	10
4*18AWG	16	/	30	30	60	0.37	96	7
2*16AWG	26	/	30	30	60	0.36	86	13
3*16AWG	26	/	30	30	60	0.37	99	13
4*16AWG	26	/	30	30	60	0.41	119	10
2*14AWG	41	/	30	45	80	0.49	155	18
3*14AWG	41	/	30	45	80	0.51	179	18
4*14AWG	41	/	30	45	80	0.56	215	15
2*12AWG	65	/	30	45	95	0.56	206	25
3*12AWG	65	/	30	45	95	0.58	239	25
4*12AWG	65	/	30	45	95	0.63	290	20
2*10AWG	104	/	30	45	95	0.62	266	30
3*10AWG	104	/	30	45	95	0.66	316	30
4*10AWG	104	/	30	45	95	0.72	385	25
3*8AWG	133	/	29	60	110	0.83	505	40
4*8AWG	133	/	29	60	125	0.93	646	35
5*8AWG	133	/	29	60	125	0.93	684	35
3*6AWG	133	/	27	60	125	0.95	694	55
4*6AWG	133	/	27	60	140	1.07	885	45
5*6AWG	133	/	27	60	140	1.07	946	45
3*4AWG	133	/	0.0177	60	140	1.09	952	70
4*4AWG	133	/	0.0177	60	155	1.22	1210	60
5*4AWG	133	/	0.0177	60	155	1.22	1304	60
3*2AWG	133	/	0.0223	60	155	1.26	1344	95
4*2AWG	133	/	0.0223	60	170	1.41	1705	80
5*2AWG	133	/	0.0223	60	170	1.41	1853	80
